100% electric motorcycle MASAI RS1

100% electric sports roadster motorcycle from MASAI, RS 1 model, approved in 125cc

Reference: MAS-RS1

The Masai RS1 embodies the perfect fusion of electric performance, modern design and environmental awareness.

This motorcycle was designed in close collaboration between the MASAI Motor brand (well known in Europe for offering accessible and reliable motorcycles) and the German manufacturer Tinbot Technology GmbH located in Frankfurt.

The RS-1 is custom designed and manufactured by Tinbot, including the electric motor.

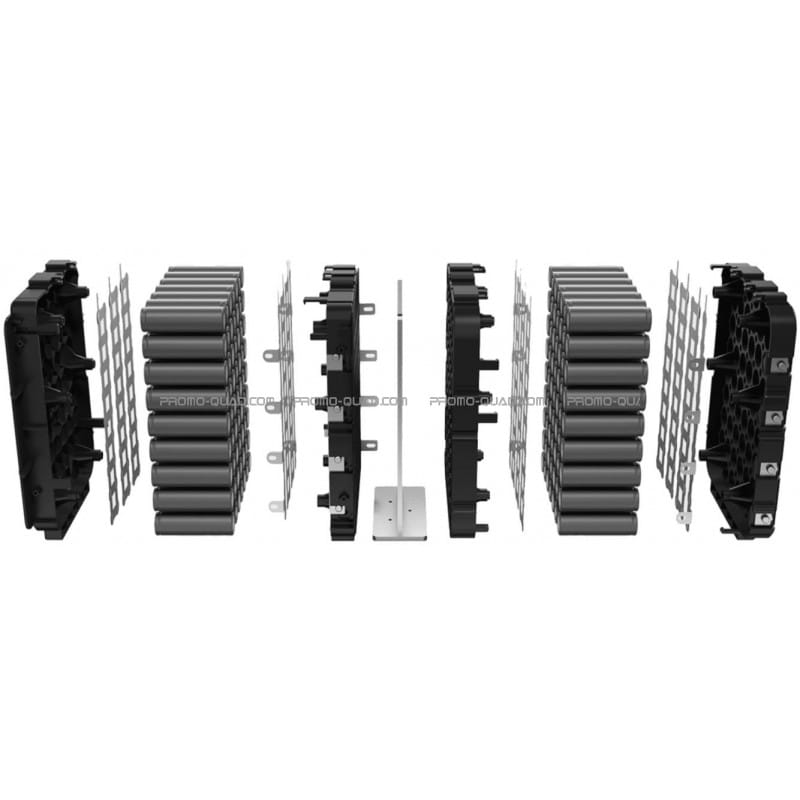

The RS 1 is equipped with a 140 Ah lithium battery for a range of 200 km. The battery is of the same type as the batteries of the Tesla Model S. The motorcycle is equipped with an integrated 2 kW battery charger that can charge the batteries in 240 minutes on a household socket.

With its powerful 11 kW electric motor and futuristic styling, the Masai RS1 delivers an electrifying driving experience while contributing to a more sustainable future for mobility.

The RS1 has many cutting-edge features including keyless start, ABS braking system, digital instrument cluster with Bluetooth connectivity.

The RS 1 provides a USB charging port for a mobile phone.

GUARANTEE
2-year parts and 1-year labor warranty on the French market.

ENGINE
Type: Permanent Magnet Brushless DC MOTOR
Lithium-ion battery 8.64 kWh, 1772 V / 120 Ah, 68kg
Cylinder capacity: L3e equivalent to 125cc (therefore motorcycle license not required, can be driven with just a car license or from the age of 16 with an A1 license)
Power: 11 kW / 35kW peak or 46.9hp
Torque: from 23.3 Nm to 99.9 Nm

DIMENSIONS
L x W x H: 2130 x 855 x 1115 mm
Wheelbase: 1500 mm
Seat height: 810mm
Front tires: 120/70-17 M/C 58H
Rear tires: 150/55-17 M/C 64S
Weight: 186kg
Ground clearance: 180mm

CHASSIS
Final drive: Chain
Front suspension: Inverted fork / travel: 110mm
Rear suspension: Gas monoshock / stroke: 35mm
Front brake: 300mm disc brake
Rear brake: 220mm disc brake
Maximum load capacity: 150 kg

EQUIPMENT

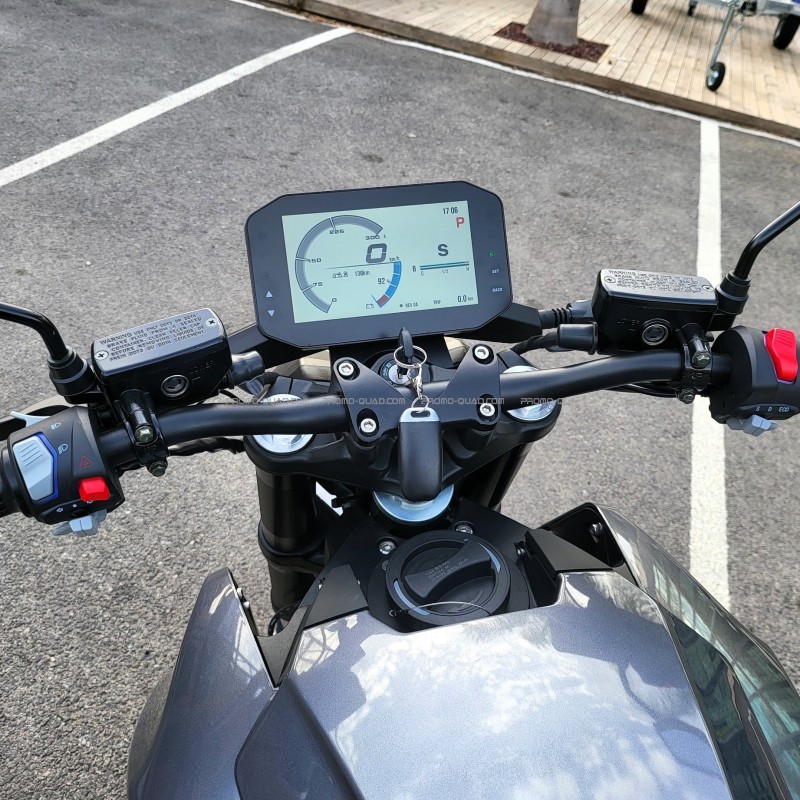

TFT meter
72V 120 Ah Lithium Battery
ABS braking + large diameter discs
LED lighting and indicators
USB connection
Recharge by type 2 connector (automobile) or on 230V domestic socket

IMPORTANT POINTS
- 100% electric
- charging time: 4h to 6h on a standard household socket
- driving from 16 years old
- driving with a car license
- TFT Color counter
- Inverted fork
- Lithium battery
- Battery life: 4000 cycles or 11 years for a full charge every day
- Possibility of recharging on a domestic socket (cable provided) or T2 rapid socket on automobile terminals
- ABS braking

- 3 driving modes: ECO, DYNAMIC and SPORT
- Max speed in ECO mode: 60 km/h with 200km maximum autonomy. (for mixed use)
- Max speed in DYNAMIC mode: 80 km/h with 160 km of maximum autonomy. (for mixed use)
- Max speed in SPORT mode: 170 km/h with 130 km of maximum autonomy. (for mixed use)
- Equipped with a reverse gear as a bonus (to make it easier to move)
