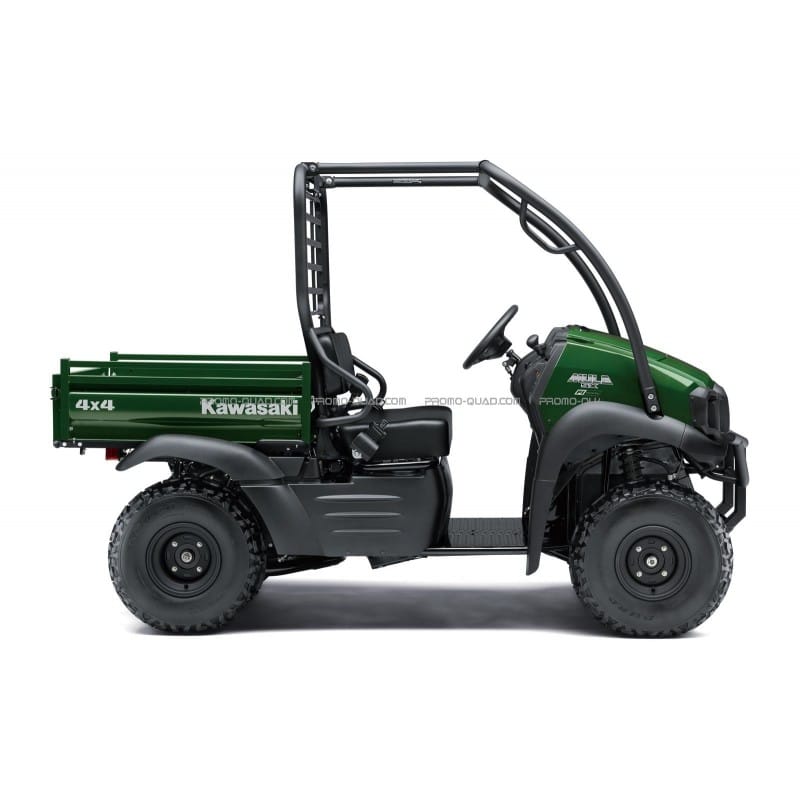

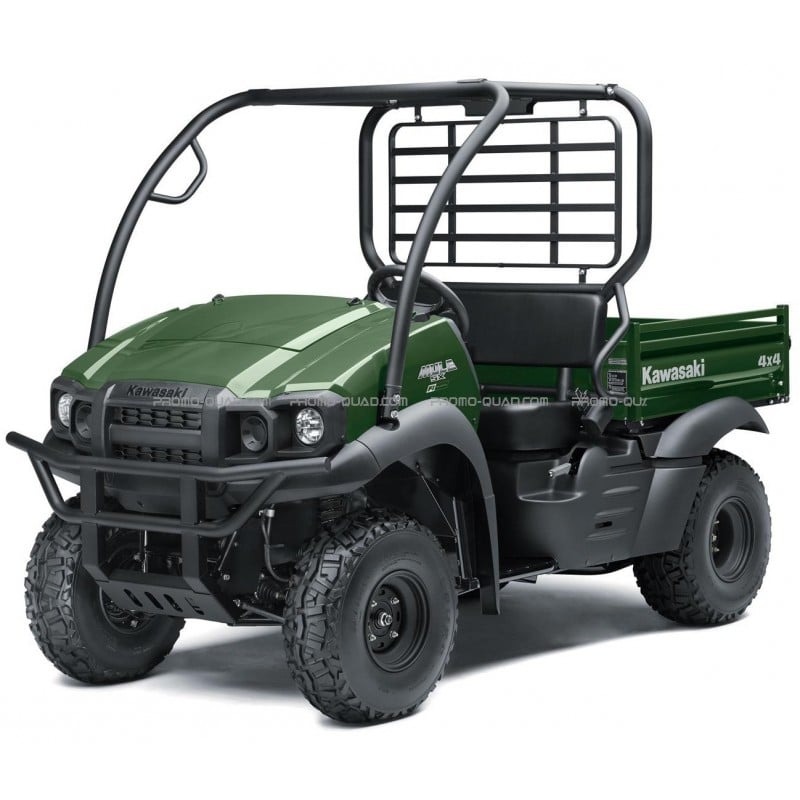

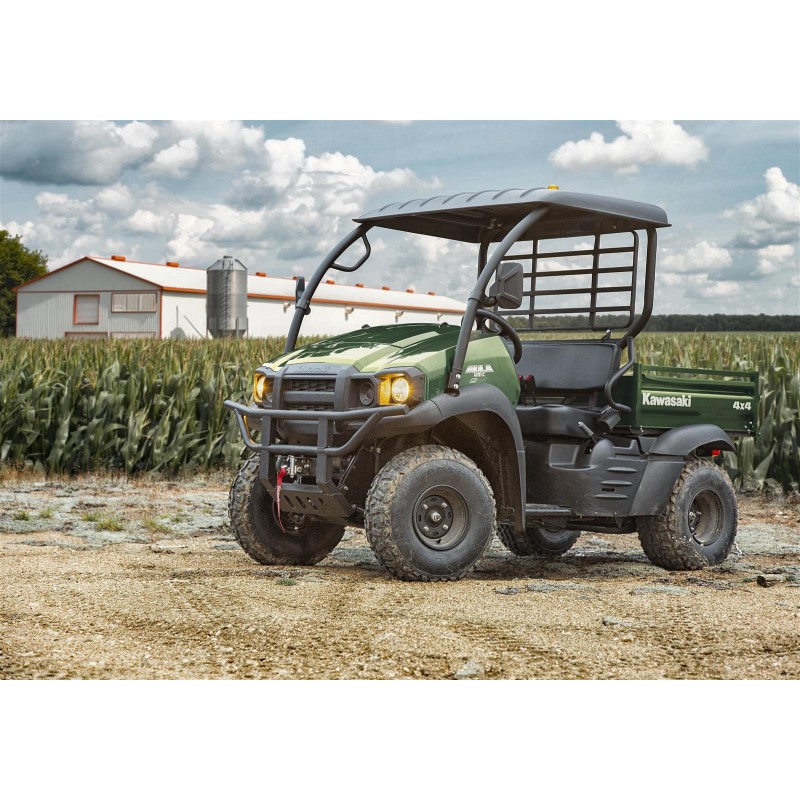

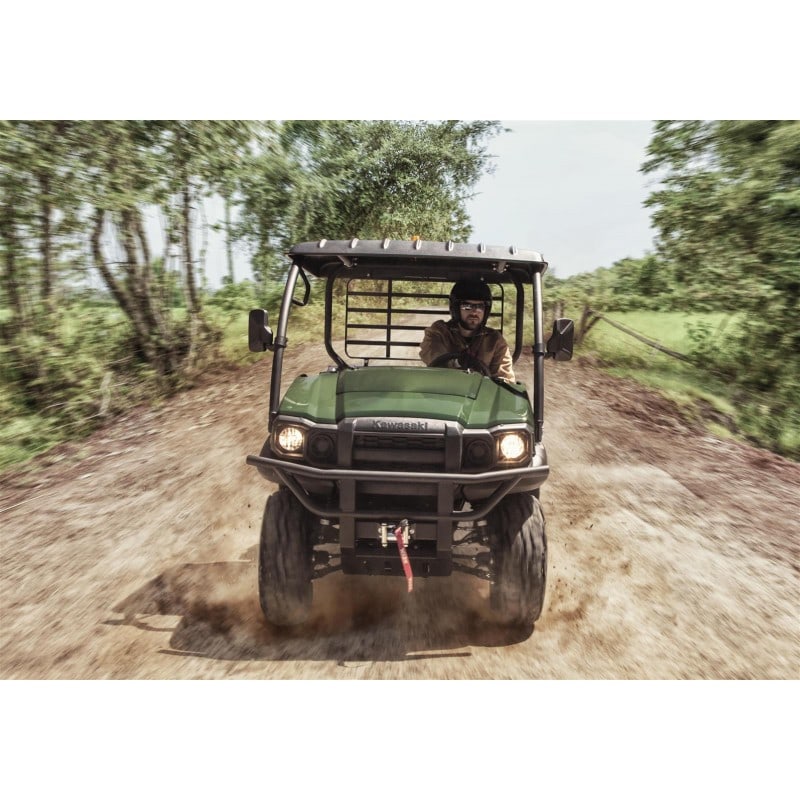

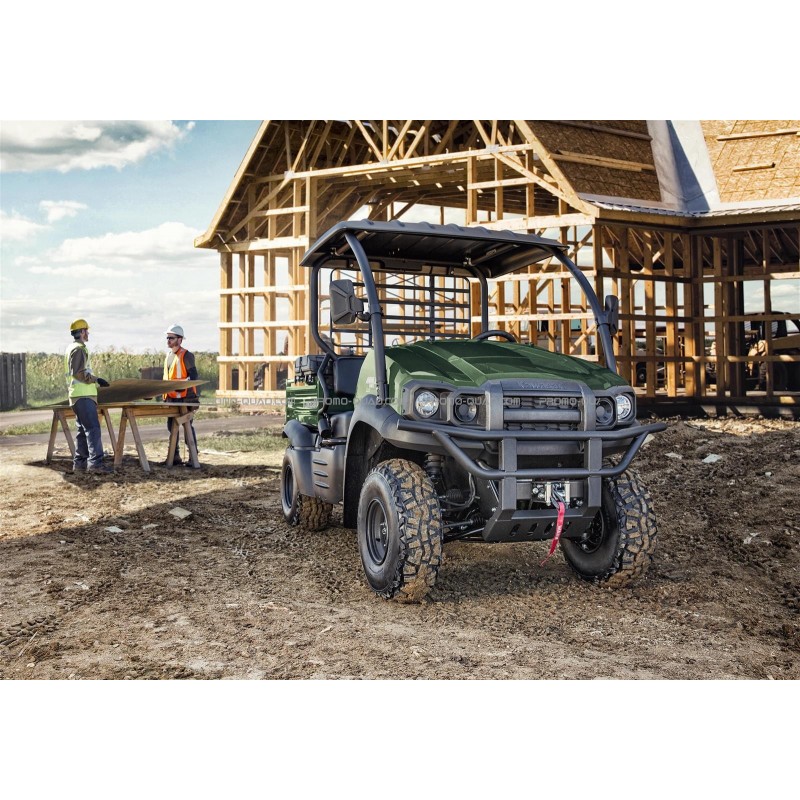

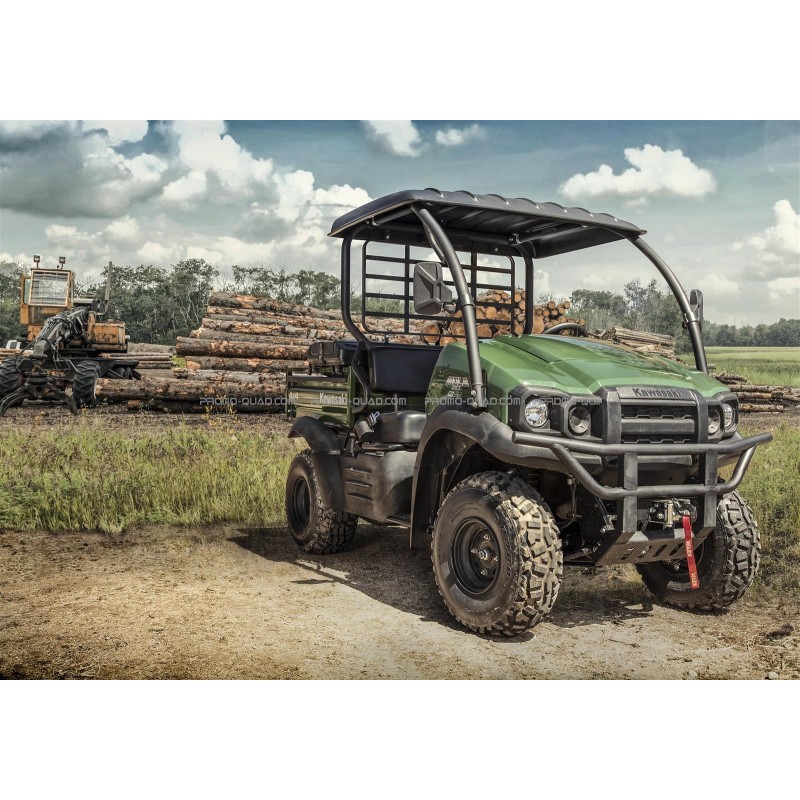

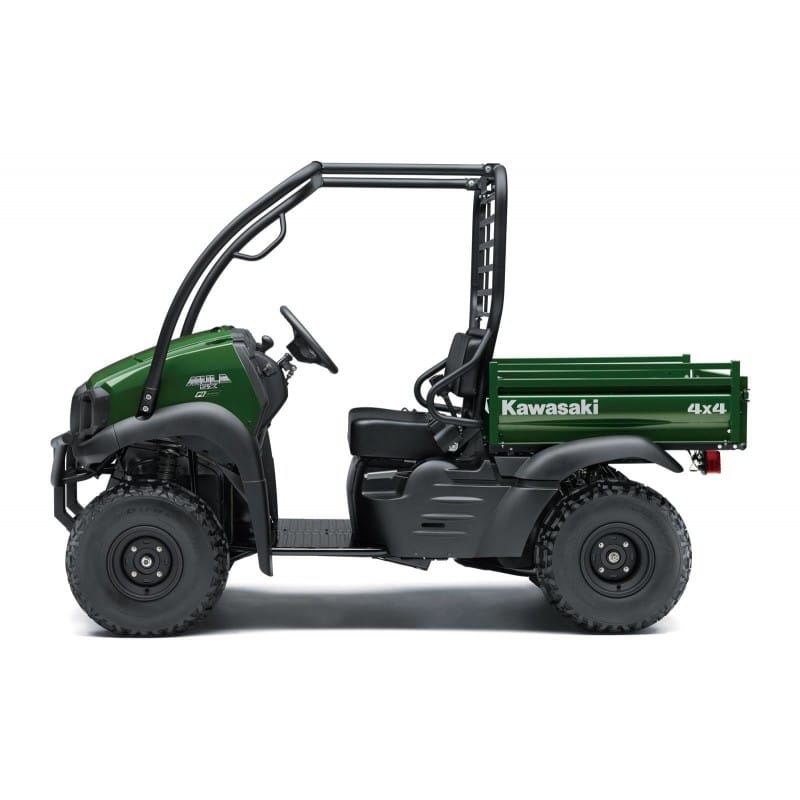

Kawasaki UTV 2023 - Mule SX 400 in 4X4

The new MULE SX 4x4 has 24-inch tires and offers a 2/4-wheel drive selector with a long and short range transfer case as well as a disengageable rear differential. The PRO style is underlined by the new suspension settings, the revised dashboard and an adjustable steering wheel. Combined with a 410cc single DOHC engine, a maximum permissible load of 181 kg and a towing capacity of up to 500 kg, the new MULE SX 4x4 is a partner of choice.

Improved comfort
The revised front and rear suspension settings provide the following benefits:
- Increased stability
- More effective shock absorption and easier heading retention in addition to improved driving comfort
- Increased maneuverability and better control

Parking brake
When you activate the parking brake lever (ideally located to the left of the driver's seat) the rear wheels are braked by an internal expansion type system.

Transmission
The automatic belt transmission with 2 ranges (long/short) and transfer case allows the MULE SX 4x4 to enjoy excellent all-terrain capabilities. The two speeds allow, while towing a heavy load, a peaceful hill climb.

Robust chassis
The durable ladder-style tubular steel chassis has been designed to ideally combine rigidity and driving comfort.

Simple and reliable engine
The MULE SX 4x4 has a 401 cc, 4-stroke, single overhead camshaft, air-cooled engine. This solid engine is compact, lightweight and extremely reliable.

Great autonomy
The 16 liter tank allows the Mule to have great autonomy. The revised design of the tank allows for easier refueling.

Automotive-inspired dashboard
The automotive-inspired dashboard incorporates key design elements from the MULE Pro to allow the driver to easily access all functions.

Tilt steering wheel
The steering wheel has an adjustment range of approximately 29°, which allows you to adopt an ideal driving position. This also makes it easier for the driver to get in and out of the cabin.

Robust style
The assertively styled front end as well as the grille and headlights borrowed from the MULE Pro give the MULE SX an image of undeniable robustness and durability.

Compact size
Total width: 1,335 mm
Length: 2710mm
Track width 1,055 mm (front) and 1,000 mm (rear).
Wheelbase: 1,780 mm.

Dumpster
The skip measures 1040 x 905 x 245 mm. It has been designed to be easily loadable on 3 sides. The maximum admissible load is 181 kg.

Front trunk
The front trunk offers practical and future-proof storage space of approximately 60 liters. The trunk is opened from inside the passenger compartment.

Engine
Engine type 4-stroke, single-cylinder, air-cooled overhead camshaft
Displacement: 401 cm³
Bore x Stroke: 82 x 76 mm
Compression ratio: 8.6:1
Fuel System Carburetor: Nikki 6C1026
Transistorized ignition
Electric starting system
Forced lubrication, wet sump

Performance & Transmission
Maximum power: 9.9 kW {13.5 hp} / 4,000 rpm
Maximum torque: 29 N•m { kgf•m} / 2,400 rpm
2-speed automatic continuously variable transmission (CVT), reverse
Final drive: Tree 2WD/4WD
Primary reduction ratio: 3.653 ~ 0.794 (belt)
Final reduction ratio: 4,000 (64/16)

Brakes & Suspensions
Brakes, front Double hydraulic drums
Brakes, rear Double hydraulic drums
Suspension, front MacPherson strut, independent
Suspension, rear Swingarm

Chassis & Dimensions
Frame type Ladder type, tubular steel
Hunting: 45 mm
Front wheel travel: 78 mm
Rear wheel travel: 79 mm
Tire, front: 24 x 9-10
Tire, rear: 24 x 11-10
Steering angle L/R: 43° (INT) / 38° (EXT),
L x W x H: 2,710 x 1,335 x 1,800 mm
Wheelbase: 1,780 mm
Ground clearance: 170 mm
Fuel capacity: 16 liters
Saddle height: 780 mm
Weight fully loaded: 432 kg
