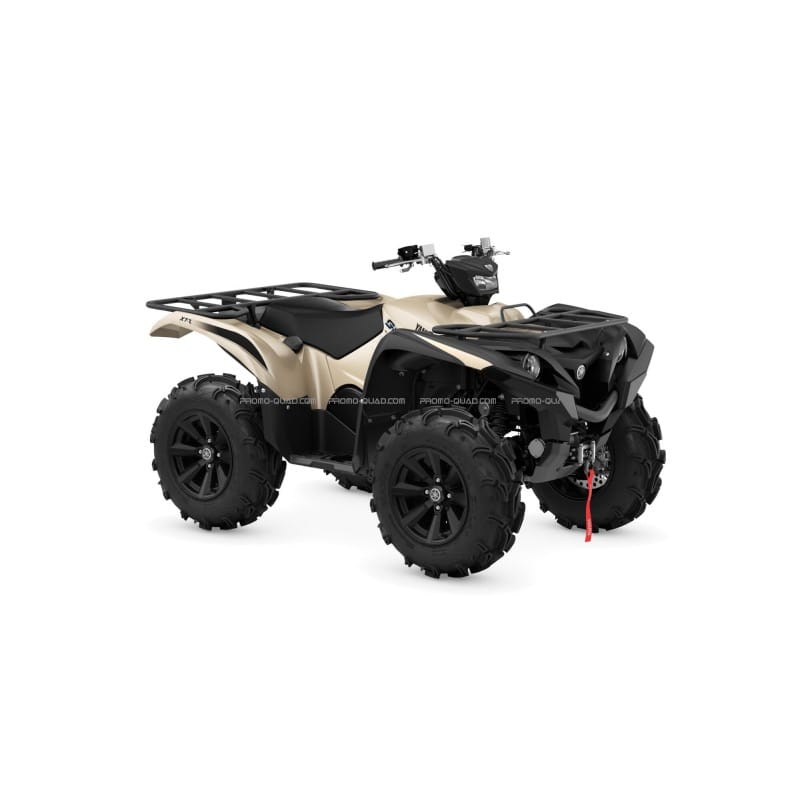

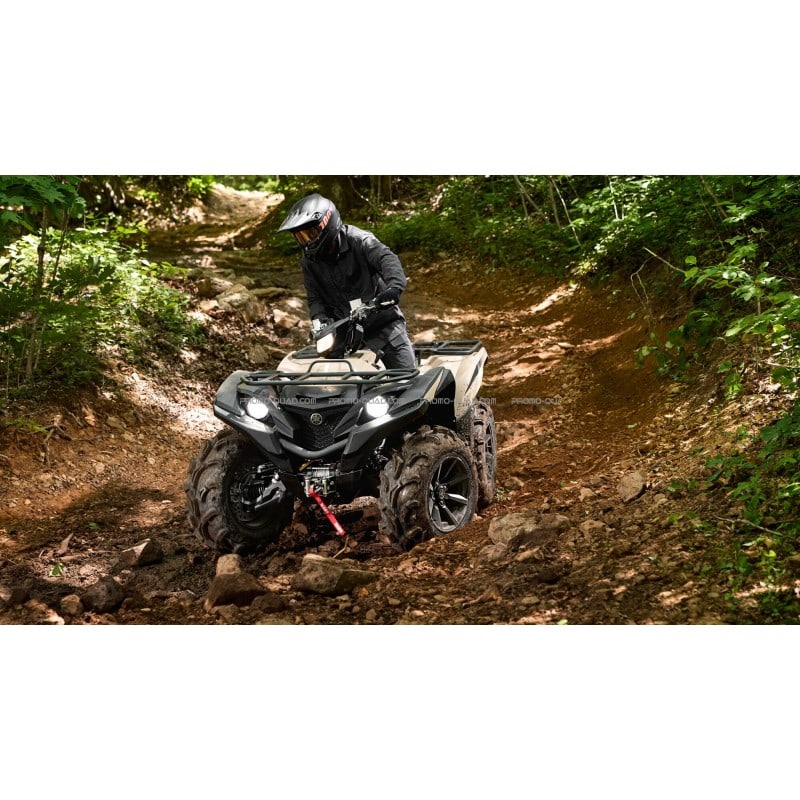

Quad Yamaha Grizzly 700 EPS SE

Quad Yamaha Grizzly 700 EPS SE

References: GRIZZLY-700-EPS-SE

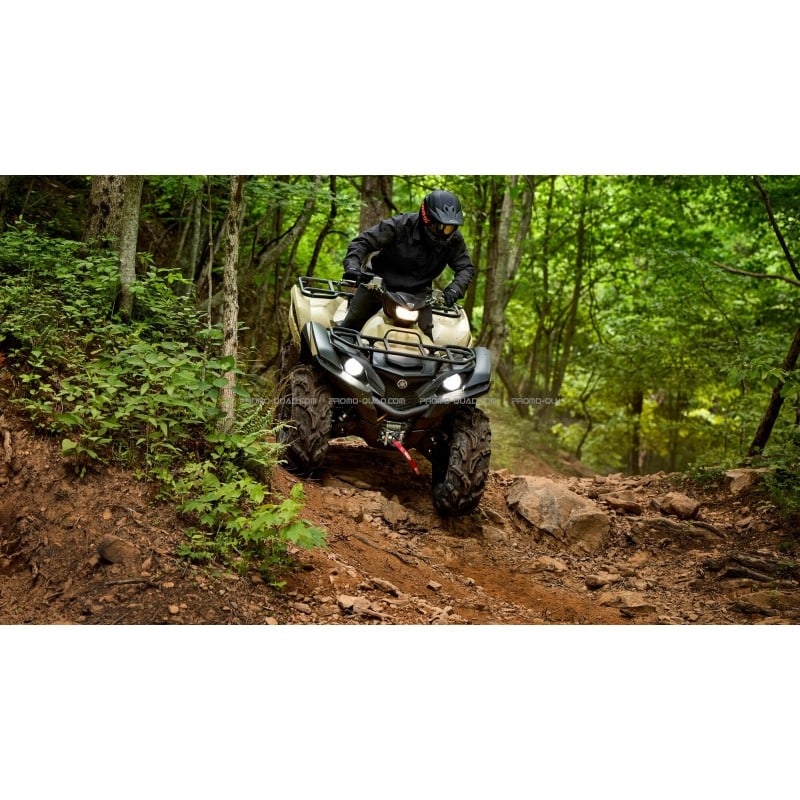

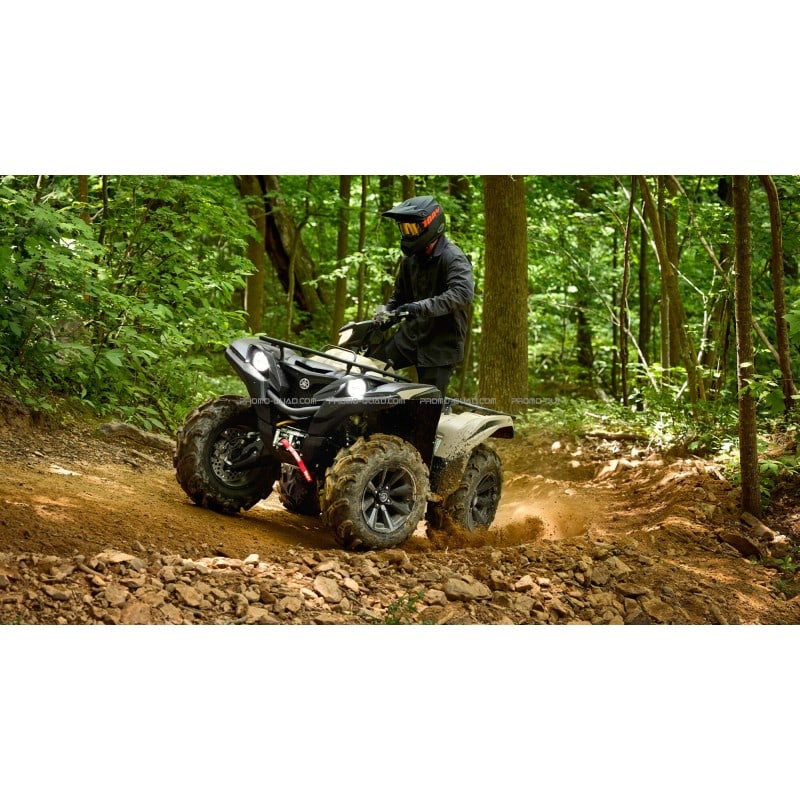

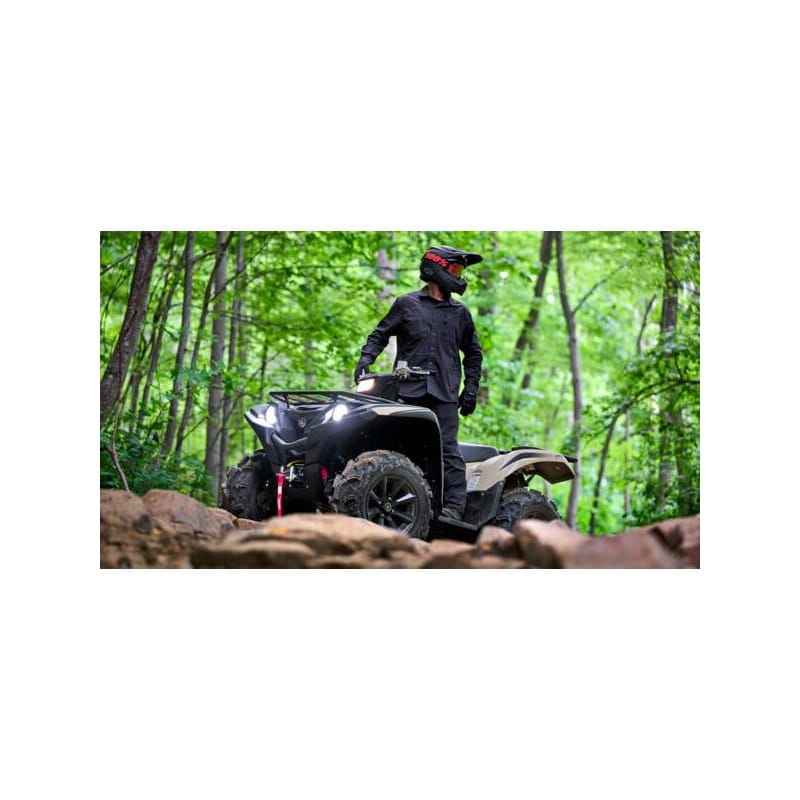

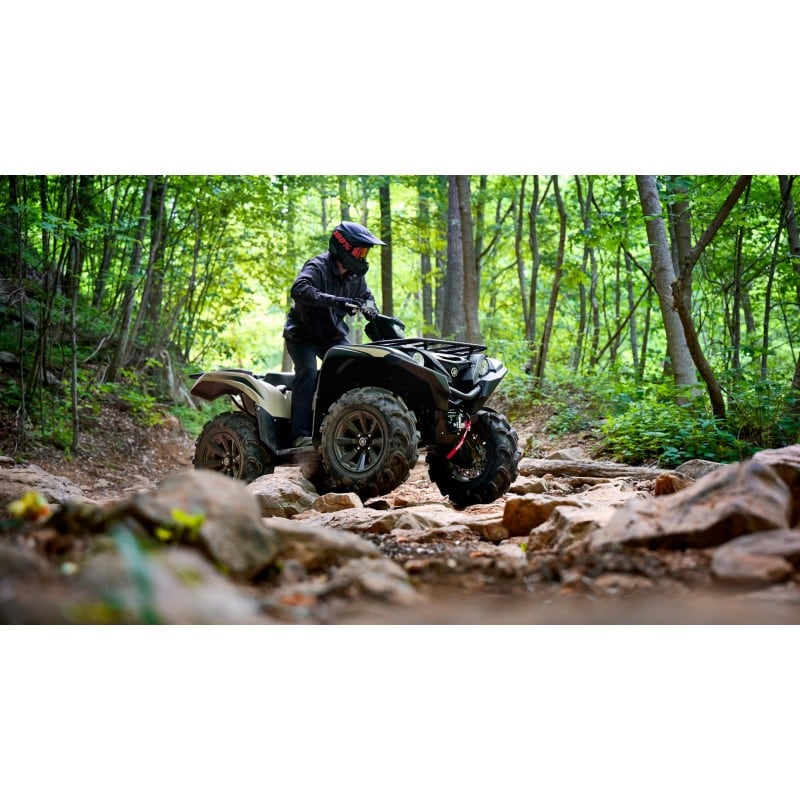

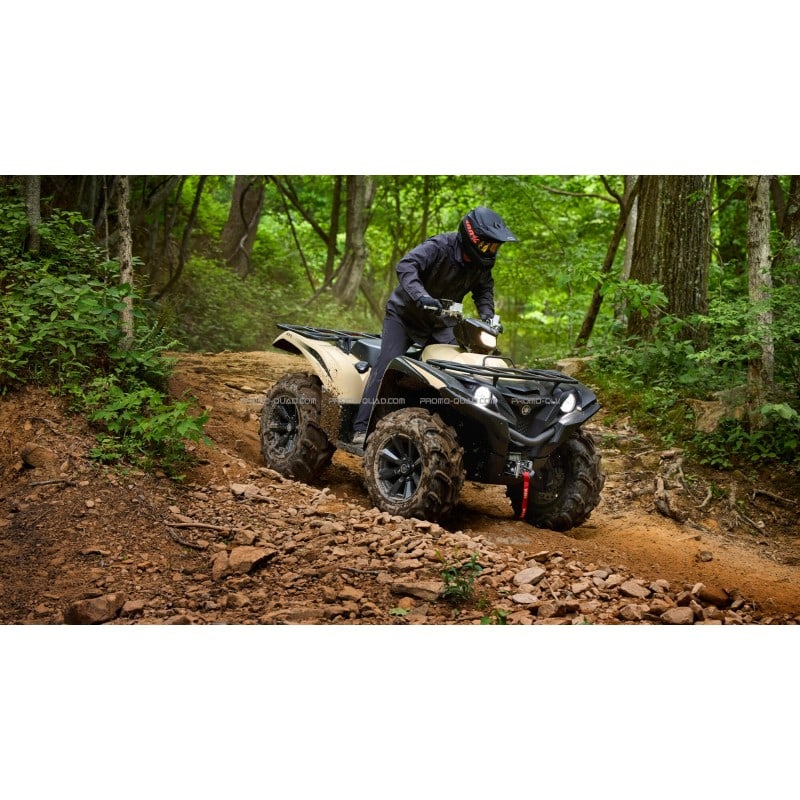

For all freedom enthusiasts looking for a machine with unique characteristics, the Grizzly 700 EPS SE is the special edition of our most compact and robust off-roader. With its powerful 686cc engine and sturdy chassis, this Grizzly gives you more freedom to explore on tracks, hilly or wooded terrain.

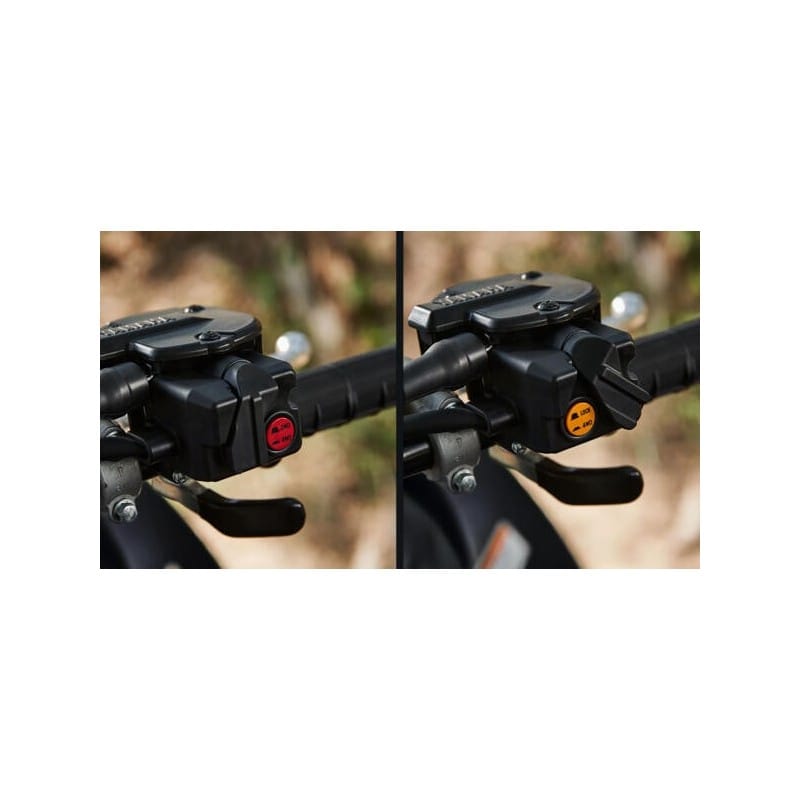

The Yamaha Ultramatic® transmission automatically selects the optimal gear for each type of terrain while the natural feeling of engine braking allows you to tackle descents with confidence. The On-Command® shift system lets you seamlessly shift between 2x2, 4x4 and 4x4 transmissions with diff-lock at the touch of a button.

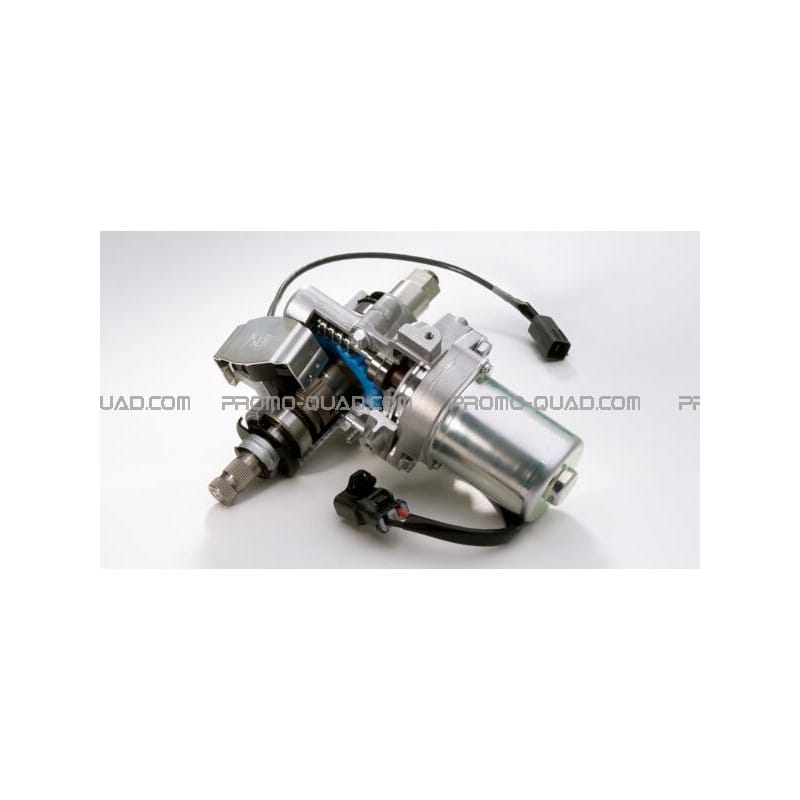

Electronic power steering provides a natural ride for improved comfort and control and with four disc brakes and independently adjustable suspension, the ultra-rugged Grizzly 700 EPS SE (Special Edition) is ready to tackle the toughest terrain. difficult. Discover this true force of nature.

• High-performance quad = real all-terrain vehicle
• Rider wheel drive mode selection system
• Excellent off-road handling
• Comfortable suspensions adapted to rough terrain
• 4 powerful and constant hydraulic disc brakes
• Perfectly balanced dynamic behavior
• Less fatigue and more steering precision with EPS
• Ergonomics with reclined and connected driving position

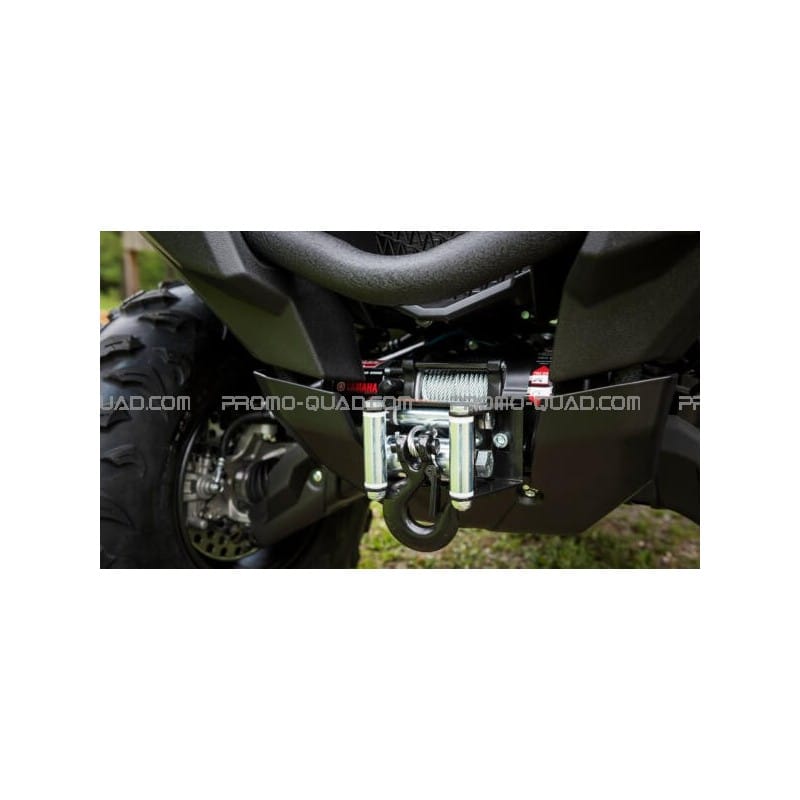

• Professional capabilities for stowing and towing cargo
• Body with Special Edition paint and 27-inch Special Edition wheels
• Approval in category T possible

  ---

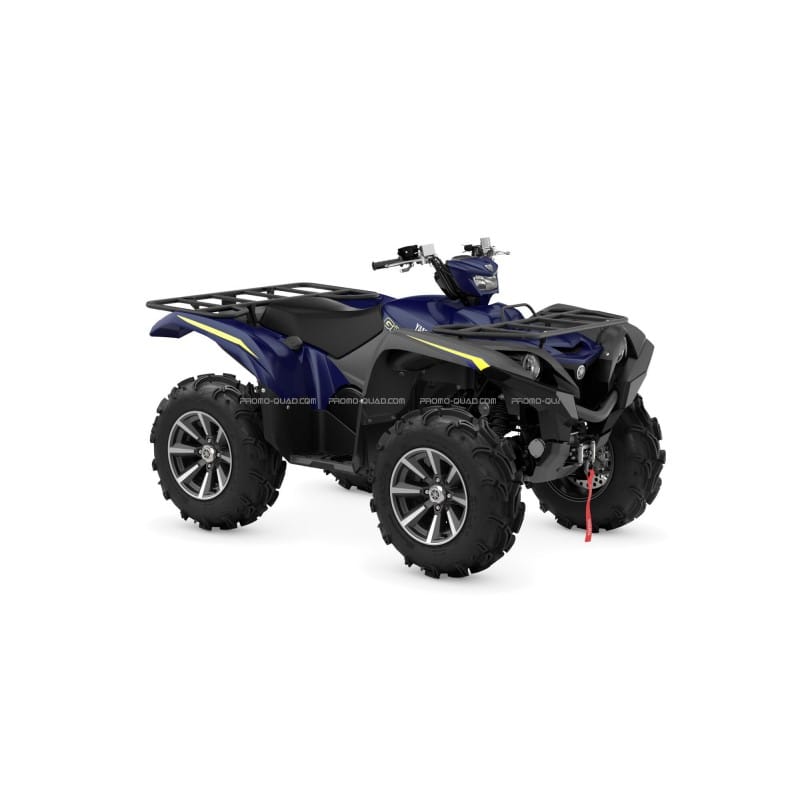

  Every Yamaha quad is designed to handle the toughest terrain, and the must-have Grizzly 700 features a host of sophisticated, easy-to-use technologies that make off-road exploration easier and even more exhilarating. Available in specific SE (Limited Edition) or XT-R colors and trim.

  ---

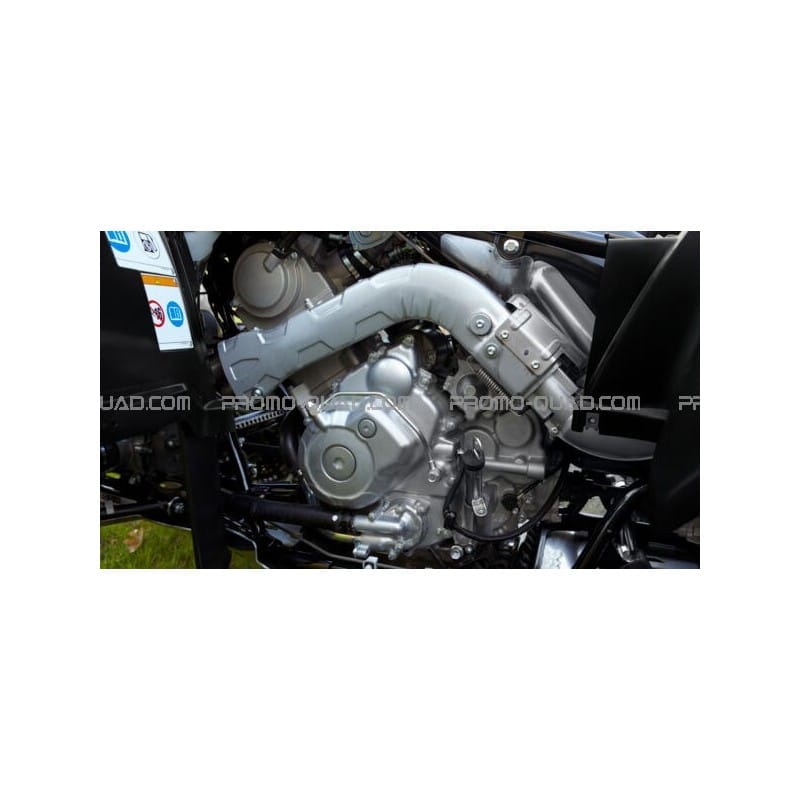

Engine:

Type of engine:

Single-cylinder, liquid-cooled, four-stroke, single overhead cam, four-valve

Displacement:

686cc

Lubrication:

Wet sump

Feed:

EFI (electronic fuel injection)

Ignition:

Electronic ignition (TCI)

Electric starter

Transmission:

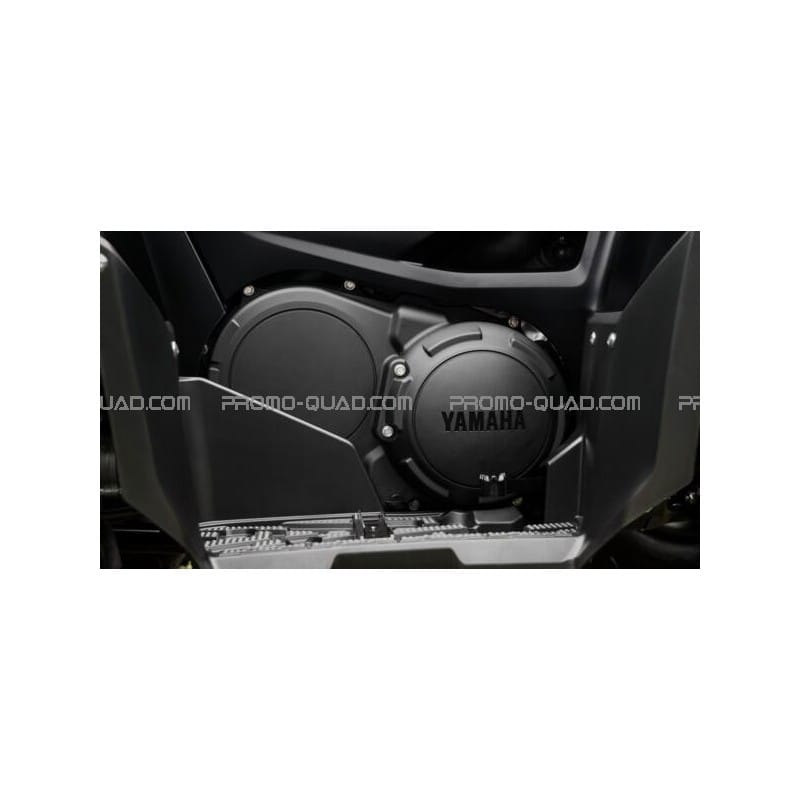

V-belt Ultramatic with engine brake on the front and rear wheels

Drive system:

On-Command 2x4/4x4 electric selection/differential lock

Final drive:

gimbal

---

Frame:

Front suspension:

Independent double wishbone, 193 mm travel, five-position preload adjustment

Rear suspension:

Independent double wishbone, 232mm travel, 5 position preload adjustment

Front brake:

Dual ventilated disc with hydraulically operated caliper

Rear brake:

controlled by the left foot or the right hand, Ventilated disc and hydraulically controlled caliper

---

Dimensions:

Overall length:

2070mm

Overall width:

1230mm

Overall height:

1253mm

Saddle height:

860mm

Wheelbase:

1253mm

Minimum ground clearance:

300mm

Gas tank capacity:

18 liters
