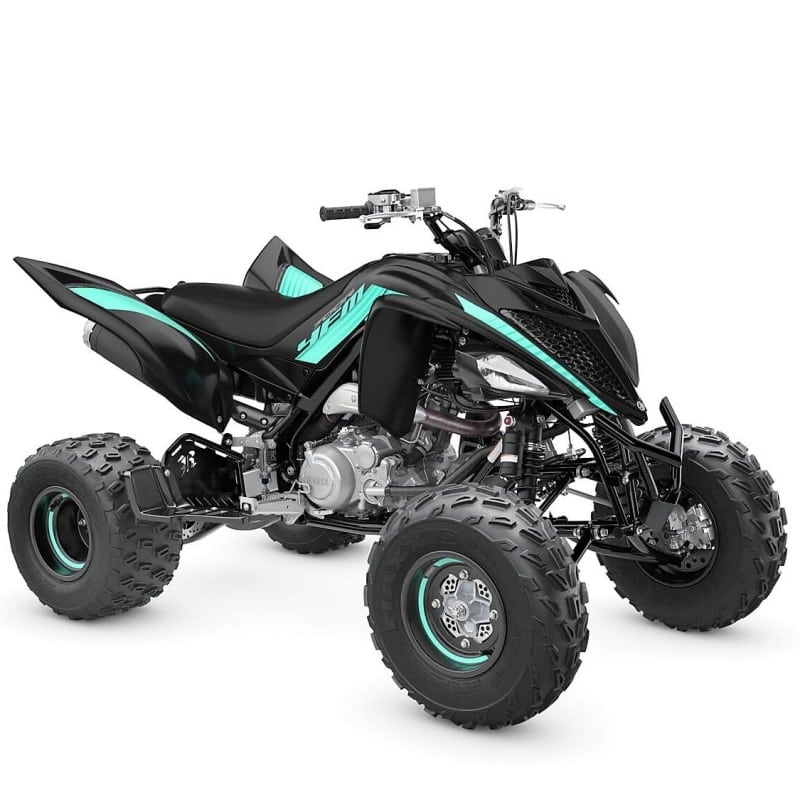

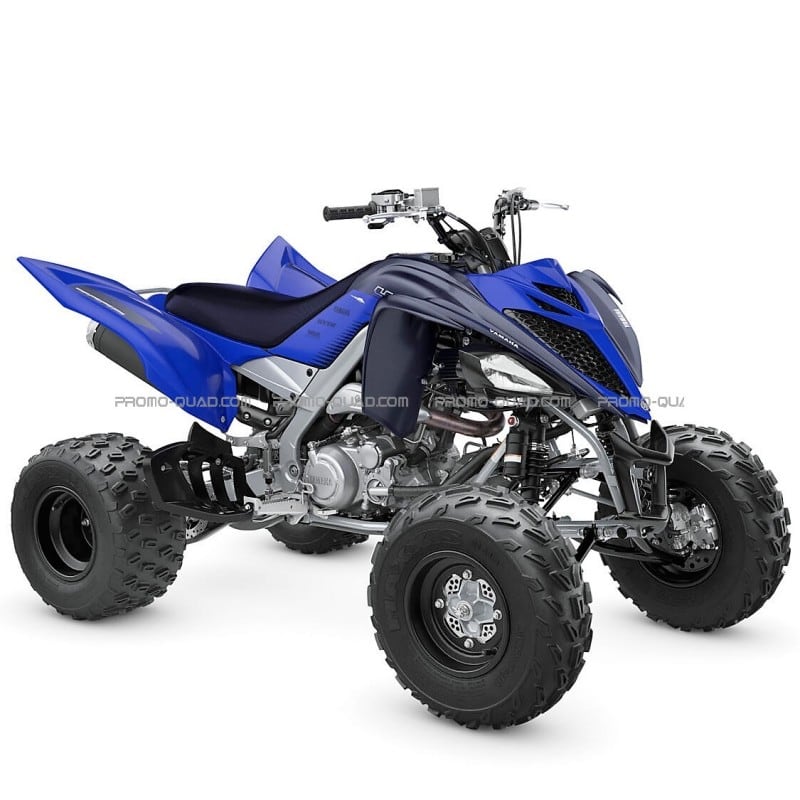

Yamaha YFM700R-SE Quad

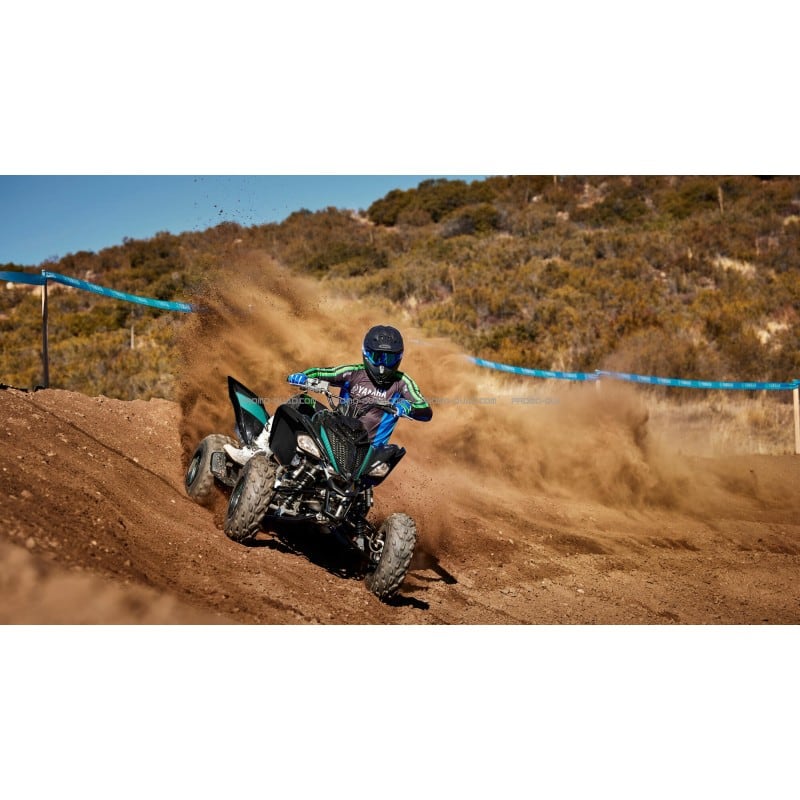

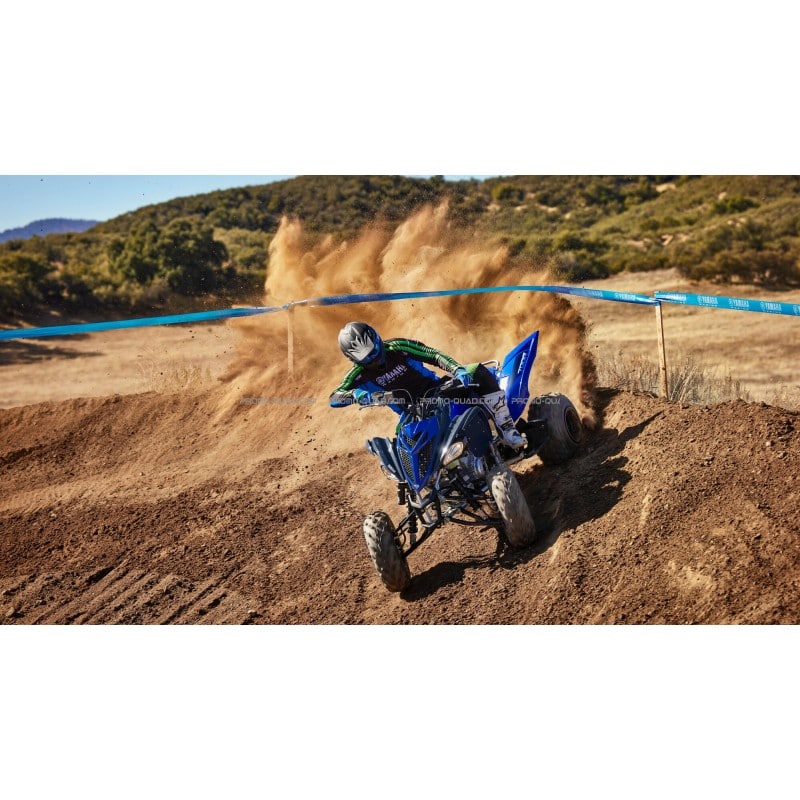

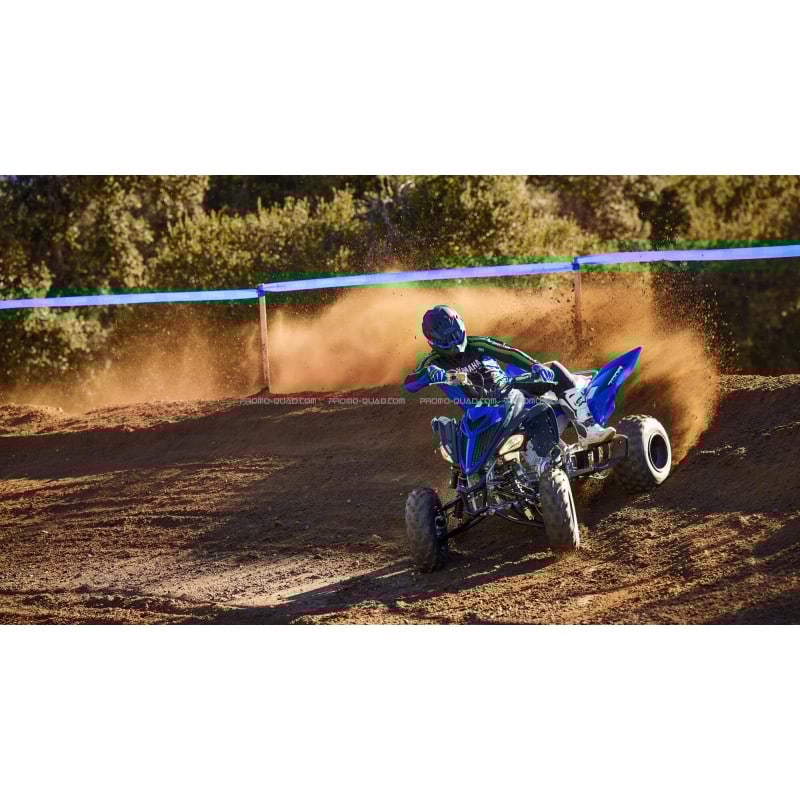

For thrill seekers, the YFM700R SE is the ultimate track weapon, whether you're riding on a closed circuit or on fast tracks.

• The benchmark large-displacement sports quad
• Instant power thanks to multi-point electronic fuel injection (EFI)
• Five-speed gearbox
• An impeccable reputation, multiple winner of the Dakar
• An iconic predator style
• Adapt the behavior of your quad by adjusting the settings of your shock absorbers
• Perfect alignment of the rear axle thanks to the eccentric chain tensioning system

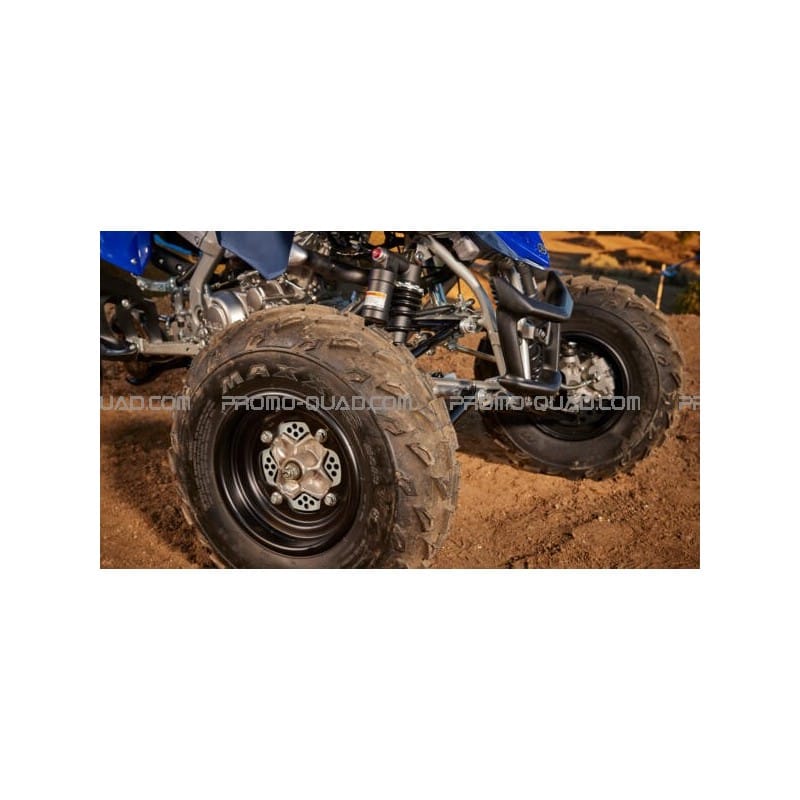

• Special Maxxis tires to suit sporty driving
• Premium parts and materials

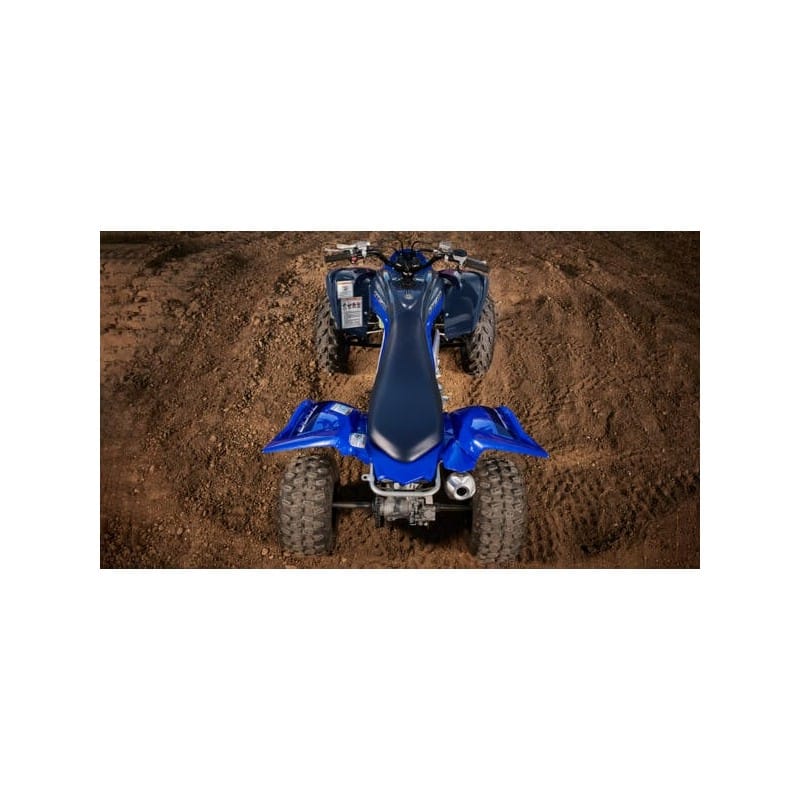

• Tailored upholstery to enhance rider comfort
• Designed without compromise

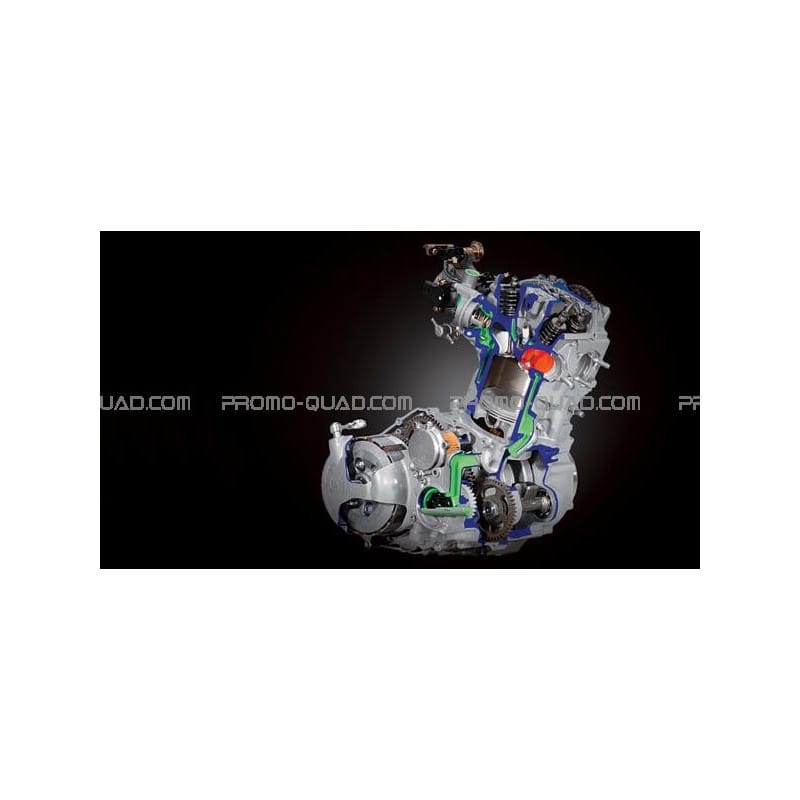

• The 686cc four-stroke engine features power-boosting technologies for blistering acceleration. Plus, its fuel-efficient design lets you go longer before refueling.

  Designed for thrill seekers, the YFM700R SE boasts a range of exclusive features, including a high-compression chamber, a special cam profile, and race-optimized fuel injection mapping. Plus, with its canister shocks and 22-inch Maxxis tires, the YFM700R SE is built for victory.

ENGINE:
Engine Type: Single Cylinder, Liquid Cooled, Four Stroke, Four Valves
Cylinder capacity: 686 cm³
Bore x Stroke: 102.0 mm x 84.0 mm
Compression ratio: 9.2:1
Lubrication: Dry sump
Fuel supply: EFI (electronic injection) 44mm
Ignition: Electronic Control Unit (ECU)
Getting Started: Electric Starter
Transmission: Five speeds plus reverse, Multi-disc clutch
Drive system: Two-wheel drive
Final drive: O-ring chain, eccentric adjustment

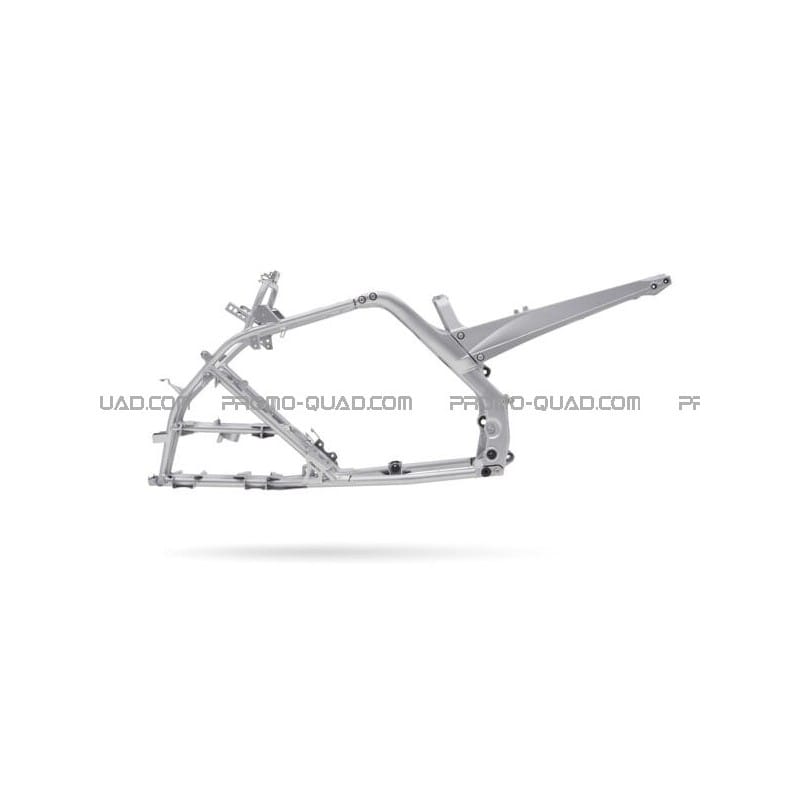

CHASSIS:

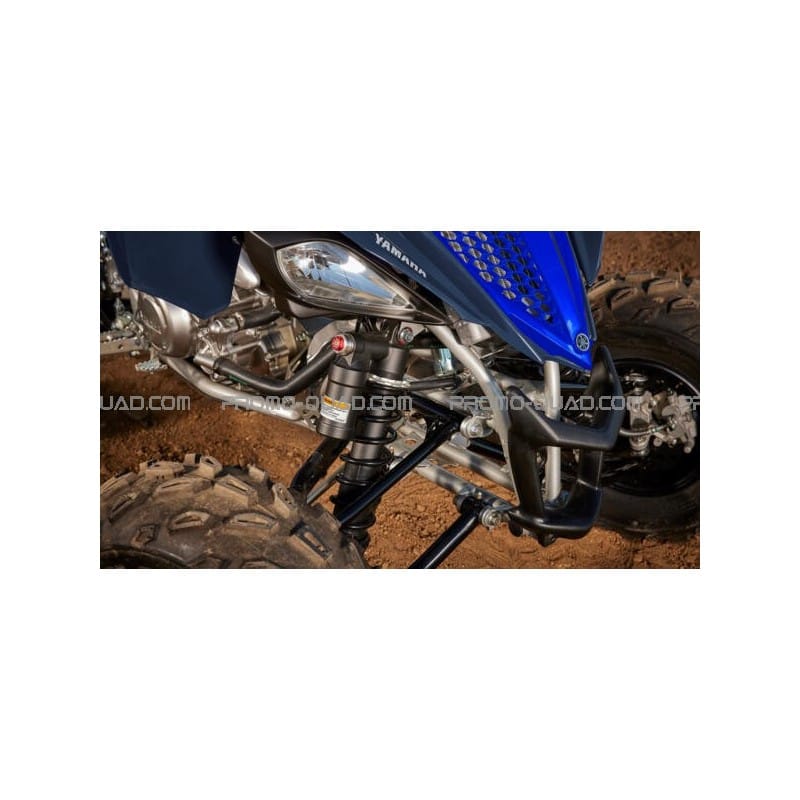

Front suspension: KYB Piggy Back with Hi and Low speed compression & single rebound adjustment, Independent double wishbone, Adjustable shock absorber preload, 230 mm travel
Rear suspension: KYB Piggy Back with Hi and Low speed compression & single rebound adjustment, Adjustable shock absorber preload, Cast aluminum swingarm, 256 mm travel
Front brake: Dual ventilated discs with hydraulically operated dual-piston calipers
Rear Brake: Petal-type ventilated disc, hydraulically operated calipers
Front tires: AT21x7R10
Rear tires: AT20x10R9

DIMENSIONS:
Overall length: 1,845 mm
Overall width: 1,170 mm
Overall height: 1,130 mm
Seat height: 815 mm
Wheelbase: 1,280 mm
Minimum ground clearance: 113 mm
Fully loaded weight: 192 kg
Fuel tank capacity: 11.0 liters
