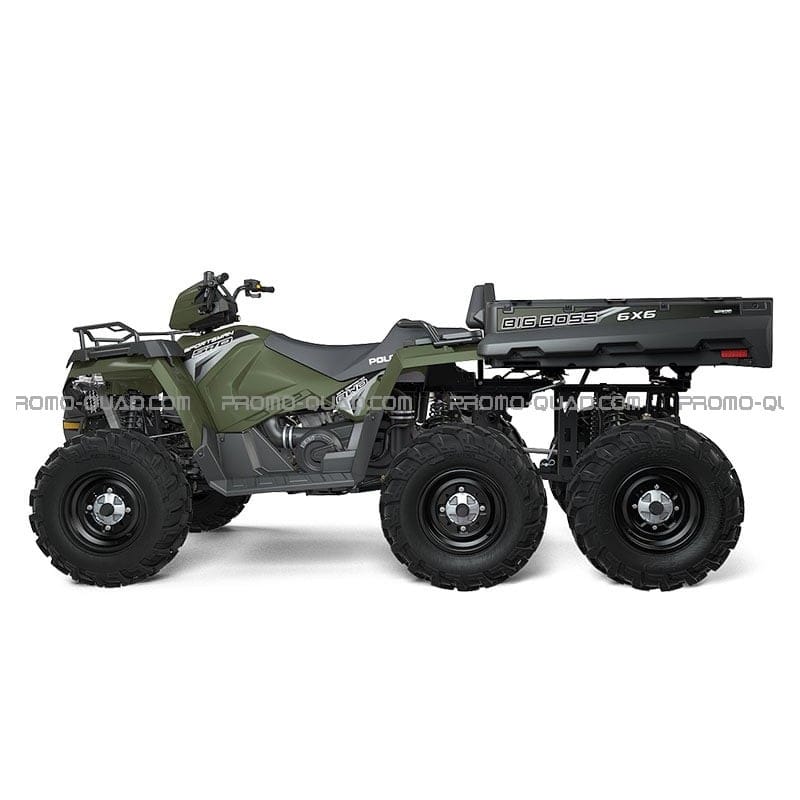

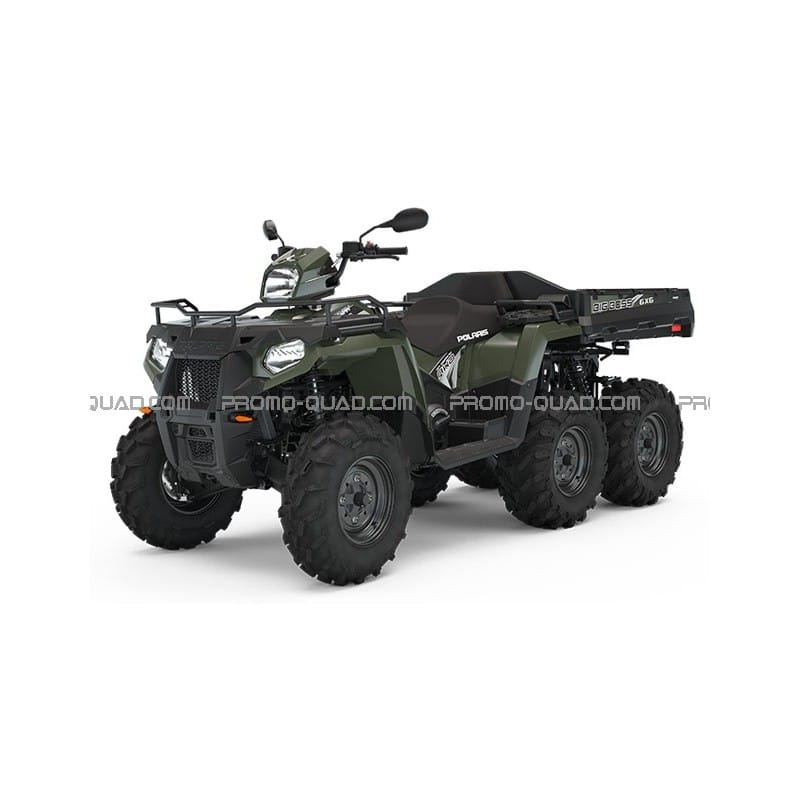

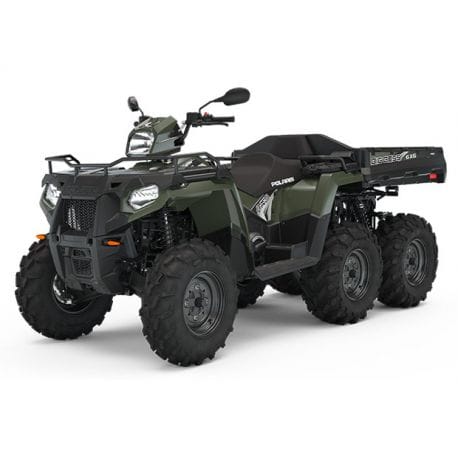

Quad Polaris-Sportsman 570 EPS 6X6

The idea of a six-wheel drive quad is not new. Polaris has already offered a Big Boss model for a while, it was available in different editions.

The Polaris Sportsman Big Boss 6X6 570 is built around the reliable Polaris Sportsman 570. It features a 567cc four-stroke, dual overhead camshaft engine that delivers approximately 44 horsepower.

This engine powers a fully automatic, shaft-driven PVT transmission fitted with a P / R / N / L / H clutch. You won't need more horsepower than what the 570cc engine has to offer.

Engine and transmission:
Active descent control Standard
Engine displacement: 567 cm³ 4-stroke DOHC single cylinder
Power: 44cv
Liquid Cooling
Standard Engine Brake System (EBS)
Transmission:
by gimbal
Transmission system type:
All-wheel drive / 2-wheel drive on request at one touch

Dimensions:
Payload capacity: 507 kg
People capacity: 2
Fuel tank capacity: 25.5 l
Box dimensions: (L x W x H) 96.5 x 99.1 x 20.3 cm
Wheelbase: 213.4 cm
Ground clearance: 29 cm
Seat height: 94 cm
Dry weight: 489 kg
Front and rear support: 40.8 kg / 362.8 kg
Total vehicle size (L x W x H) 295 x 121.9 x 124.5 cm

Brakes:
Parking brake: P position / lockable hand lever
Front and Rear Brakes: Five-wheel hydraulic disc and single lever with rear hydraulic foot brake

Other specifications:
Front rack extension, box
Hitch towing capacity 680 kg
Lighting 50W triple high beam, 50W double low beam, dual brake / tail light
Instruments: Digital gauge, speedometer, odometer, tachometer, 2 tripometers, hour meter, gear indicator light, fuel gauge, all-wheel drive warning light, voltmeter, coolant temperature, high temperature warning light, clock, DC plug

Suspensions:
Rear suspension: independent double wishbone, 24.1 cm travel
Front suspension: MacPherson suspension strut with 8 '' travel
Cargo System: 23L Front Dry Storage, Lock & Ride Dump Bed Rails and Rear Rack
Hitch Type: Standard 2 '' (5cm) Receiver

Tires and Wheels:
Rear tires: PXT 26 x 10
Front tires: PXT 26 x 8
12 inch steel wheels
