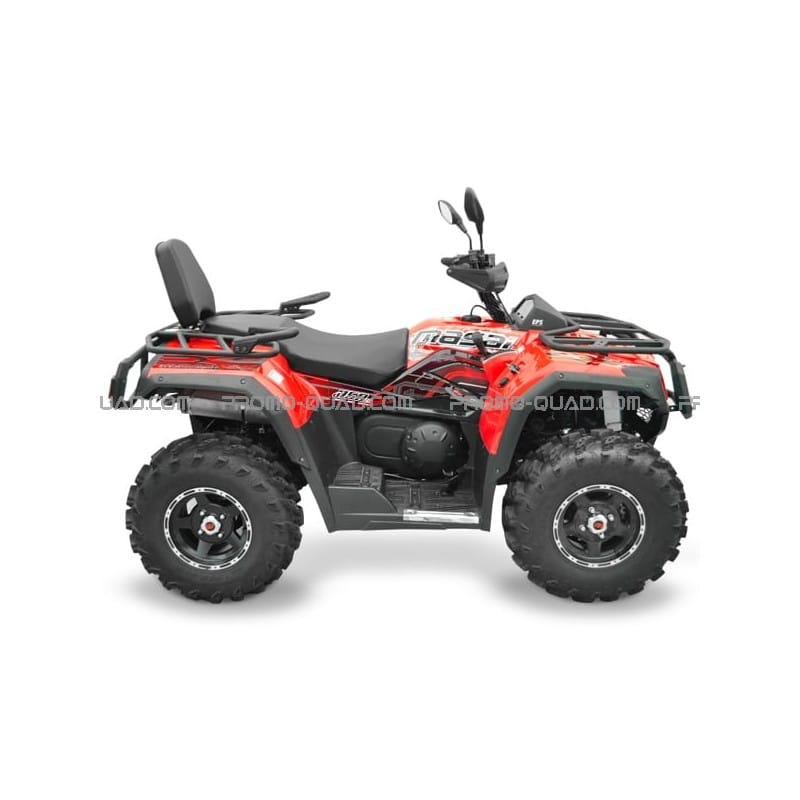

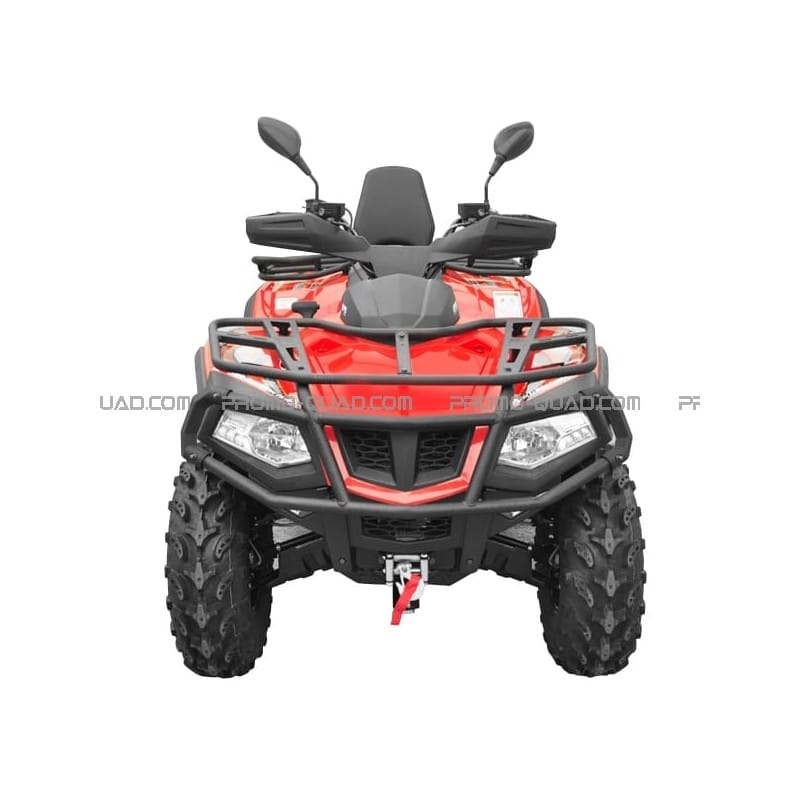

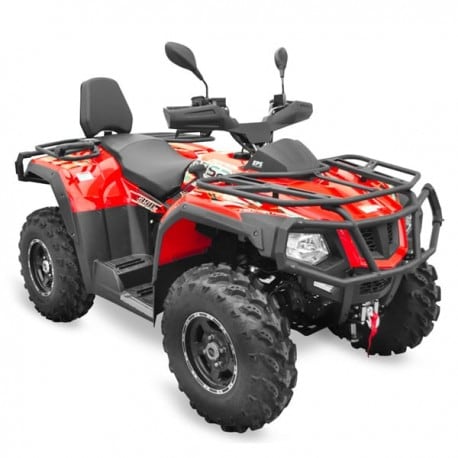

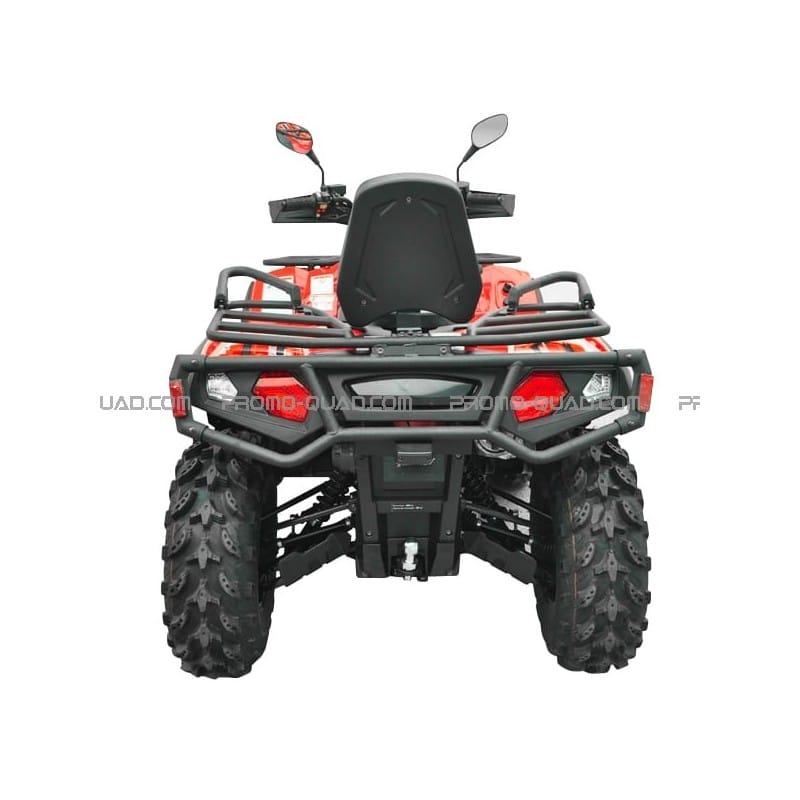

Quad Masai ix 750 eps

At Masai, the "A" quad family comes in 500, 550 and especially 750! The latter uses the latest generation of the single-cylinder engine, increased to 735 cm3, for unparalleled torque and flexibility of use.

The 4-wheel independent suspension, the front differential lock, the cardan transmission and the winch controlled from the handlebars (or wireless) make it a tool capable of rendering many services in all circumstances.

ENGINE
Type: Single cylinder 4T 4 valves with DELPHI injection
Displacement: 735cc
Bore x Stroke: 102 x 90mm
Compression: 9.5:1
Ignition: Electronic
Cooling: Liquid
Starting: Electric

DIMENSIONS
Ground clearance: 320mm
Front tyres: 26X9-12
Rear tyres: 26X10-12
Dry weight: 360 kg
Traction on public roads: 200 kg
Tank: 15 liters
Fuel: Unleaded gasoline

FRAME
Transmission: Automatic variator,
LHNRP
4x4 mode on demand
Front differential, full lock
on demand
Final drive: By gimbals
Front suspension: 2 independent shock absorbers
Rear suspension: 2 independent shock absorbers
Front braking: 2 hydraulic discs
Rear braking: 1 hydraulic disc

EQUIPMENT:
12-inch aluminum rims
Winch with handlebar or wireless control
