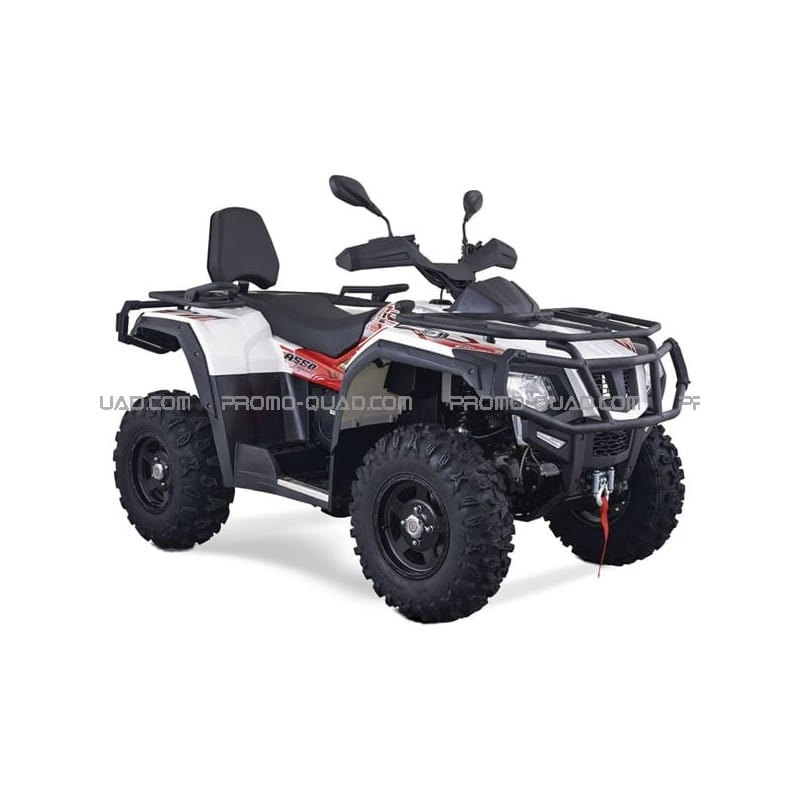

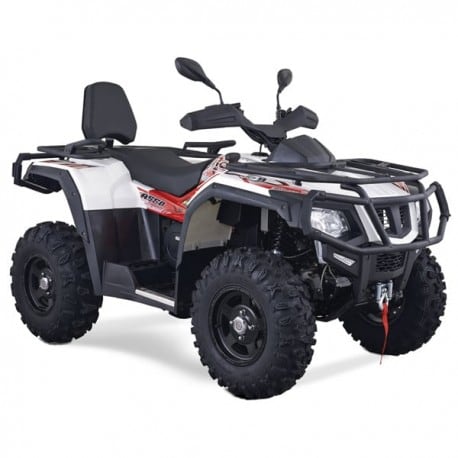

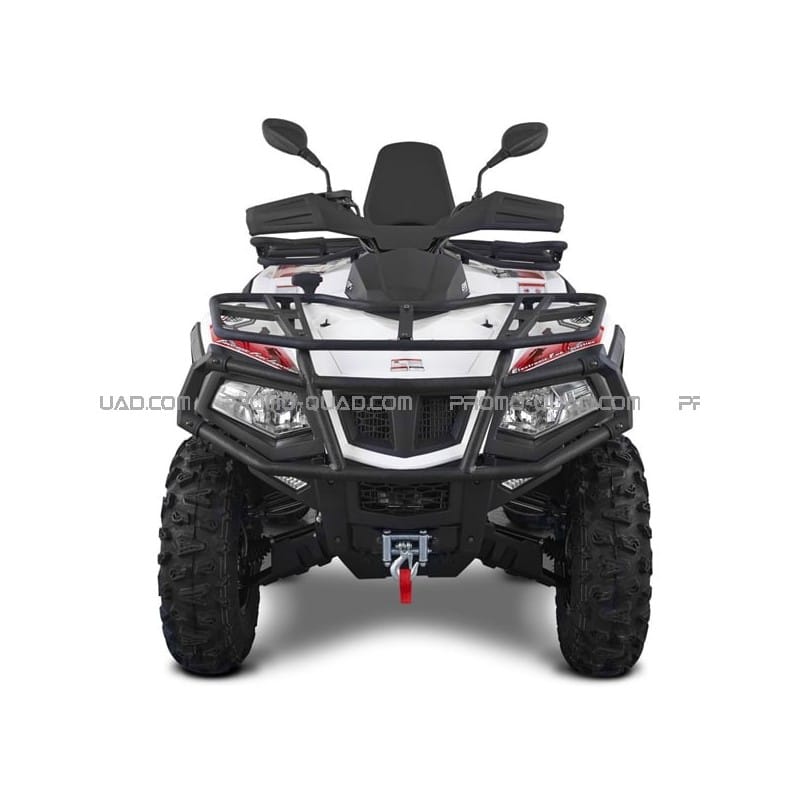

Quad Masai A550 ix eps

Power steering
2-seater road approved
550 cc single cylinder 4-stroke engine
DELPHI electronic injection
4x4 on demand
Total front and rear differential lock on request
12 inch aluminum rims
Equipment: Front and rear luggage racks + Winch + Tow ball + Socket for trailer hitch

ENGINE
Type: Single cylinder - 4T
Displacement: 550cc
Bore x Stroke: 91 x 84mm
Compression: 9.4:1
Ignition: CDI
Cooling: Liquid
Starting: Electric / manual launcher

FRAME
Transmission: Auto variator Long speed
or short + M. AR
+ 4x4 mode on demand
+ front and rear differential with lock
Final drive: By universal joint
Front suspension: 2 independent shock absorbers
Rear suspension: 2 independent shock absorbers
Front braking: Hydraulic 2 discs
Rear braking: Hydraulic 1 disc

DIMENSIONS
L x W x H: 2320 x 1285 x 1240 mm
Ground clearance: 295mm
Front tyres: 25/08/12
Rear tyres: 25/10/12
Dry weight: 334 kg
Traction on public roads: 162 kg
Tank: 15 liters
Fuel: Unleaded gasoline

EQUIPMENT
Power steering
Front and rear luggage racks
Winch
Hitch ball + hitch socket
12 inch aluminum rims
