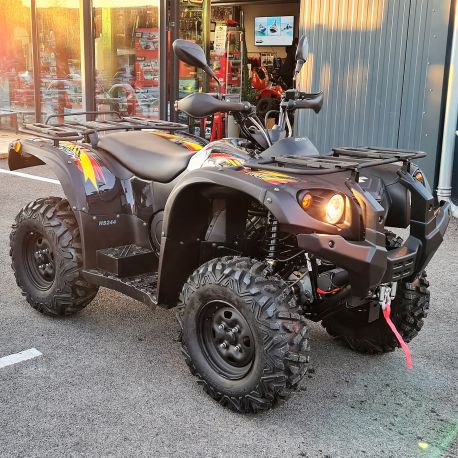

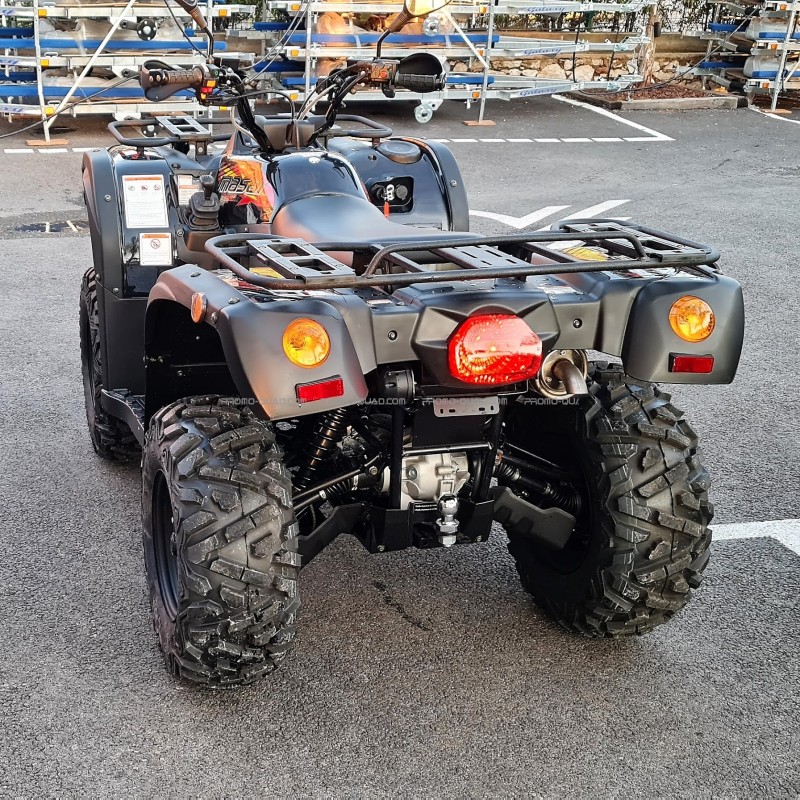

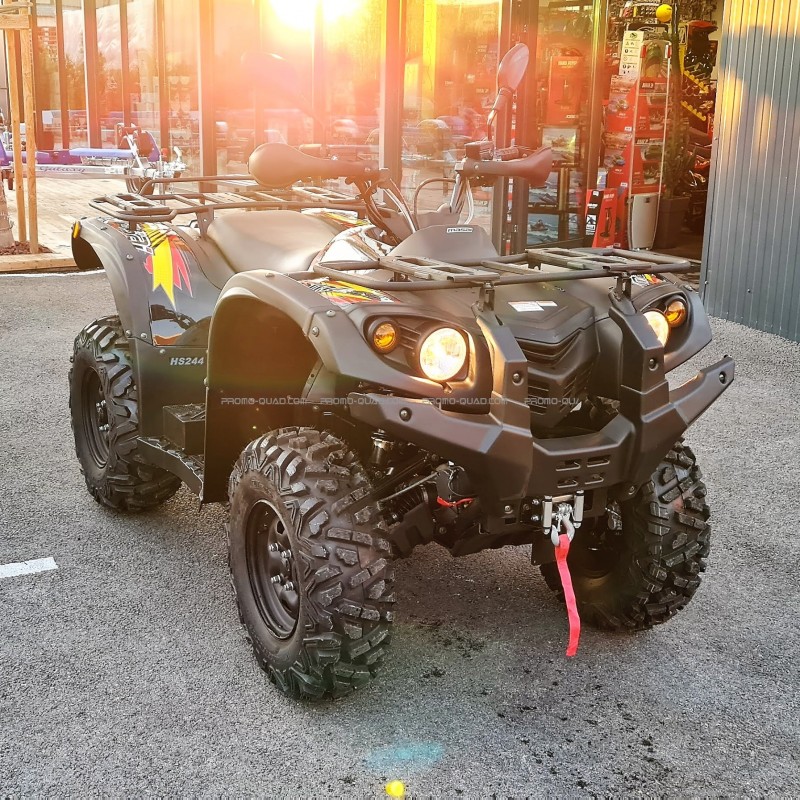

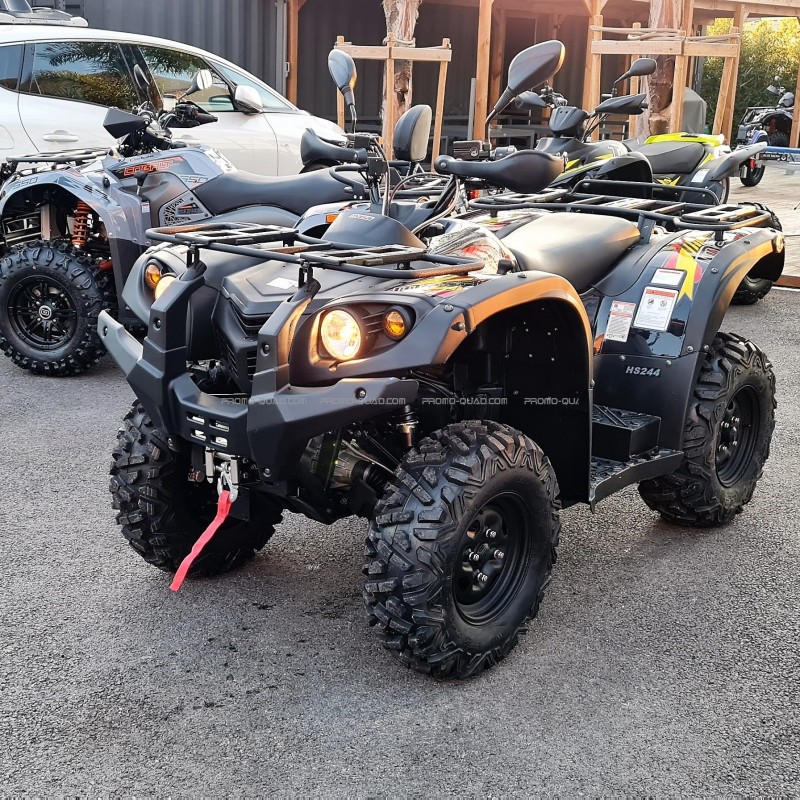

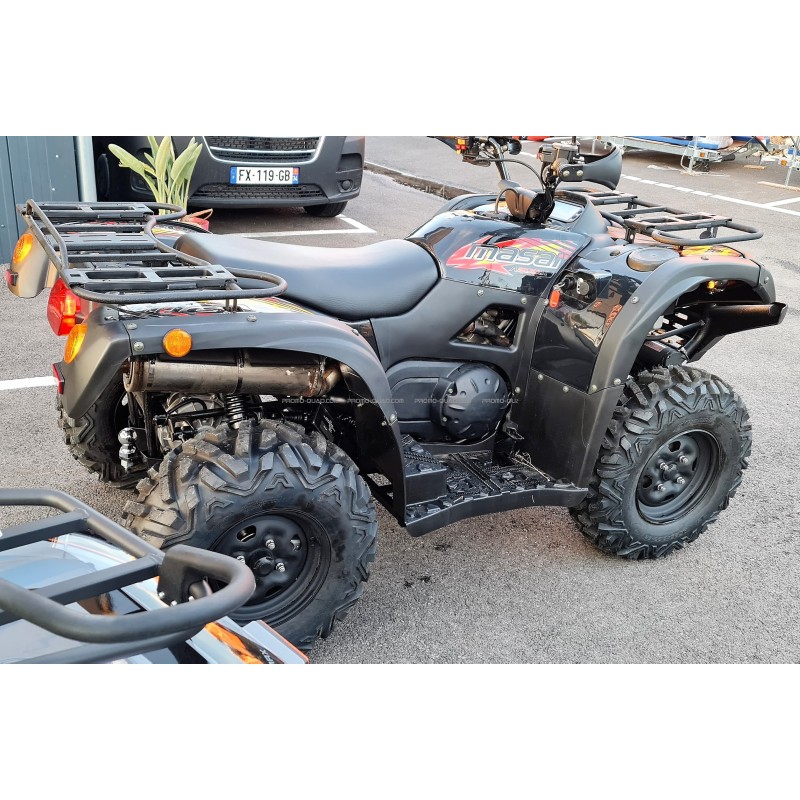

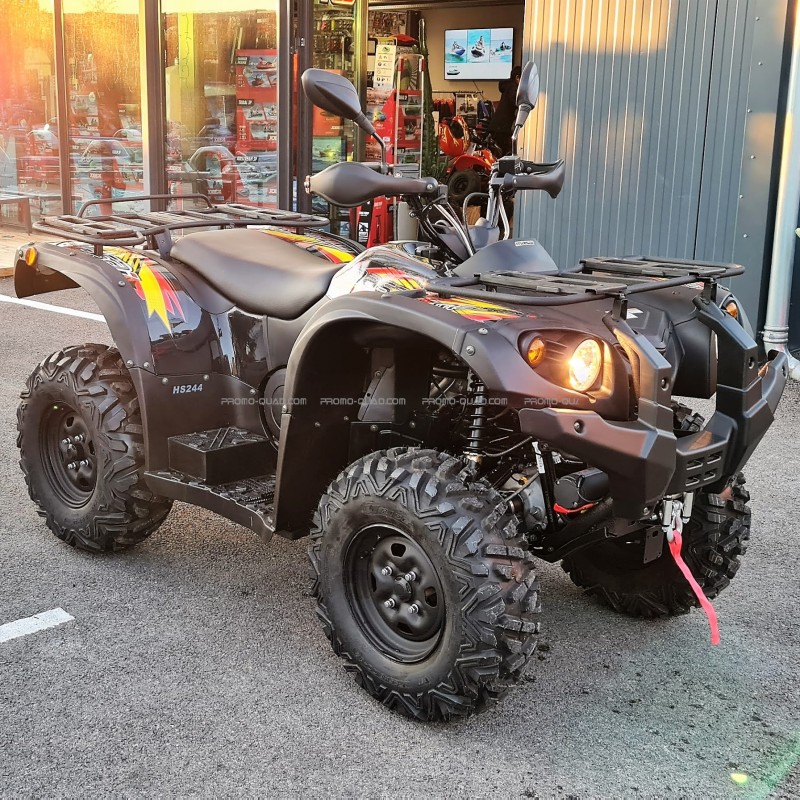

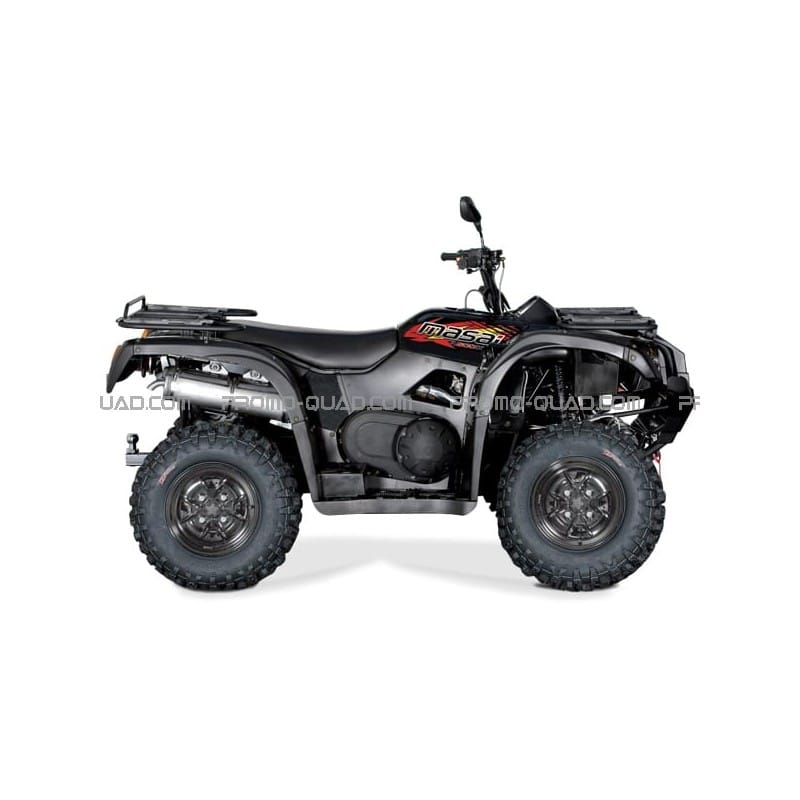

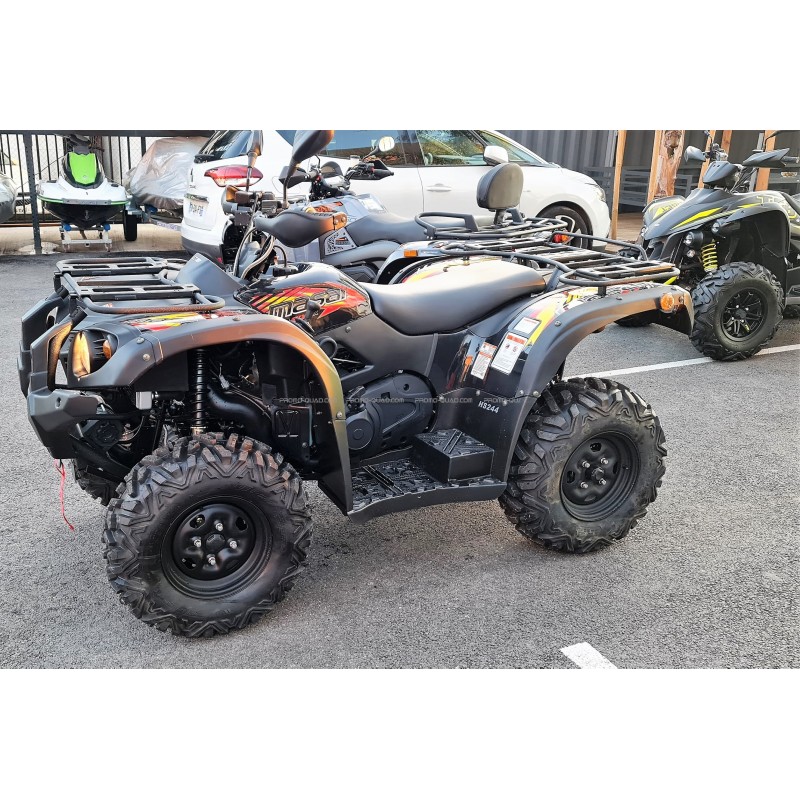

Quad Masai A 500 ix

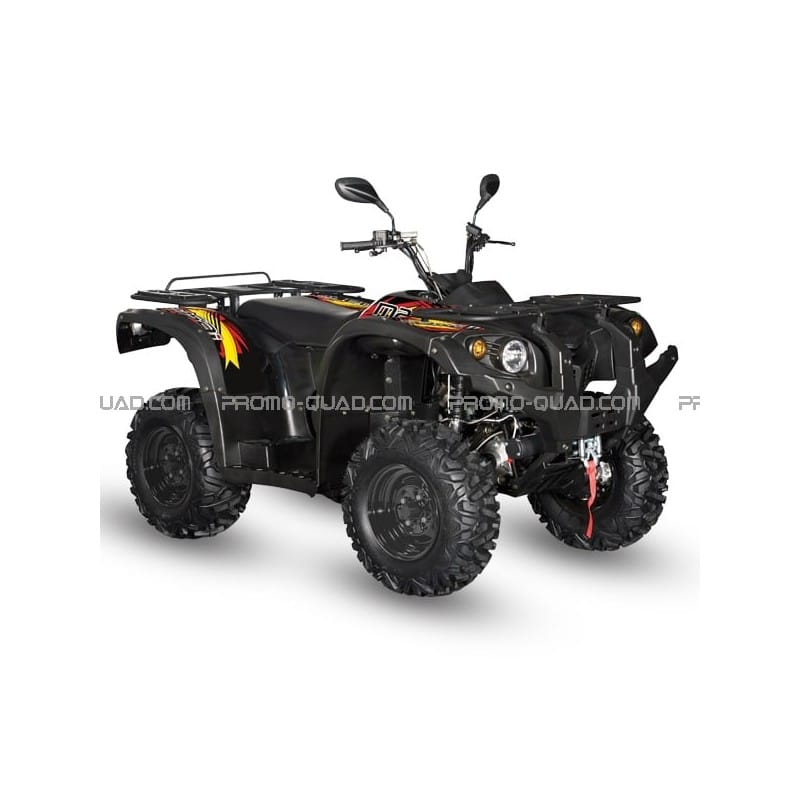

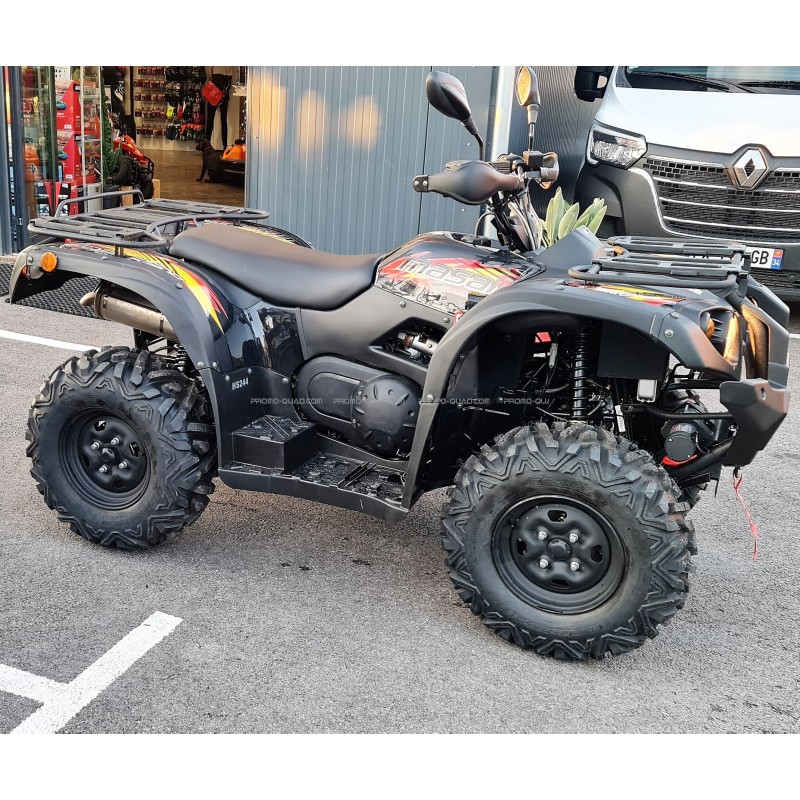

The Masai A500 iX Quad is a road-legal quad for two people. It can be used for leisure or professional use thanks to its adapted equipment: winch, hook and ball towbar and more. You will love driving this powerful quad with a 500cc single-cylinder 4T electronic injection engine.

The Masai A500 iX Quad is road approved for two people. Its powerful 500cc 4T single-cylinder electronic injection engine allows you to enjoy the good weather on roads or trails

The quad starts electric and with a hand-recoil starter, and is liquid-cooled. The Masai A500 iX quad is automatic, with high or low speed, in addition to reverse, and its final drive is via a cardan shaft.

The front suspension consists of 2 independent shock absorbers, the same pattern is reproduced at the rear, 2 independent shock absorbers.

Braking is of good quality thanks to its 2 hydraulic discs at the front, its single hydraulic disc at the rear and its 12-inch front and rear tires.

The weight is 312kg, the ground clearance is 290mm and the fuel tank can hold up to 17 liters powered by unleaded gasoline.

The little extras: non-slip passenger running boards for added safety, a digital speedometer, front and rear bull bars, 2 parking brakes, trailer hitch socket, winch, tow bar and ball, front and rear luggage racks, 155kg public road towing, 650kg private road towing, 4x4 passage, total front differential lock by electric control, waterproof storage.

ENGINE
Type: Single-cylinder - 4T
Cylinder capacity: 471 cc
Bore x Stroke: 84.5 x 84 mm
Compression: 9.4:1
Power: 14.8 kW / 5500 rpm
Torque: 35 Nm / 4500 rpm
Ignition: CDI
Cooling: Liquid
Start: Electric / manual recoil starter

DIMENSIONS
Ground clearance: 290 mm
Front tires: 08/25/12
Rear tires: 25/10/12
Dry weight: 312 kg
Traction on public roads: 155 kg
Tank: 17 l
Fuel: Unleaded gasoline

CHASSIS
Transmission: Auto variator Long speed
or short + M. AR
+ 4x4 mode on demand
+ front and rear differential with lock
Final drive: Cardan shaft
Front suspension: 2 independent shock absorbers
Rear suspension: 2 independent shock absorbers
Front braking: Hydraulic 2 discs
Rear brake: Hydraulic 1 disc

EQUIPMENT

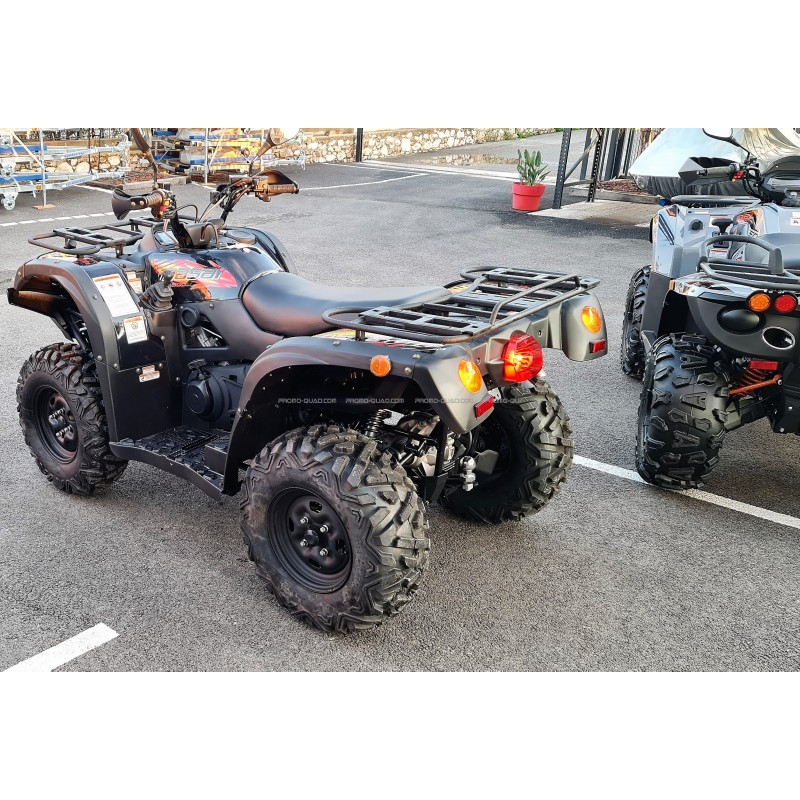

Front and rear luggage racks

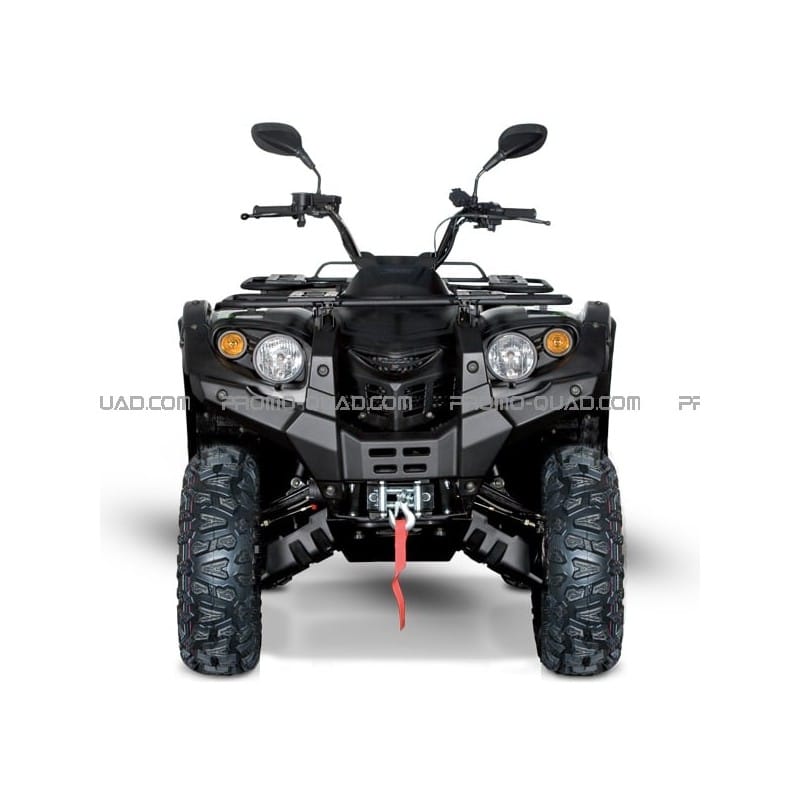

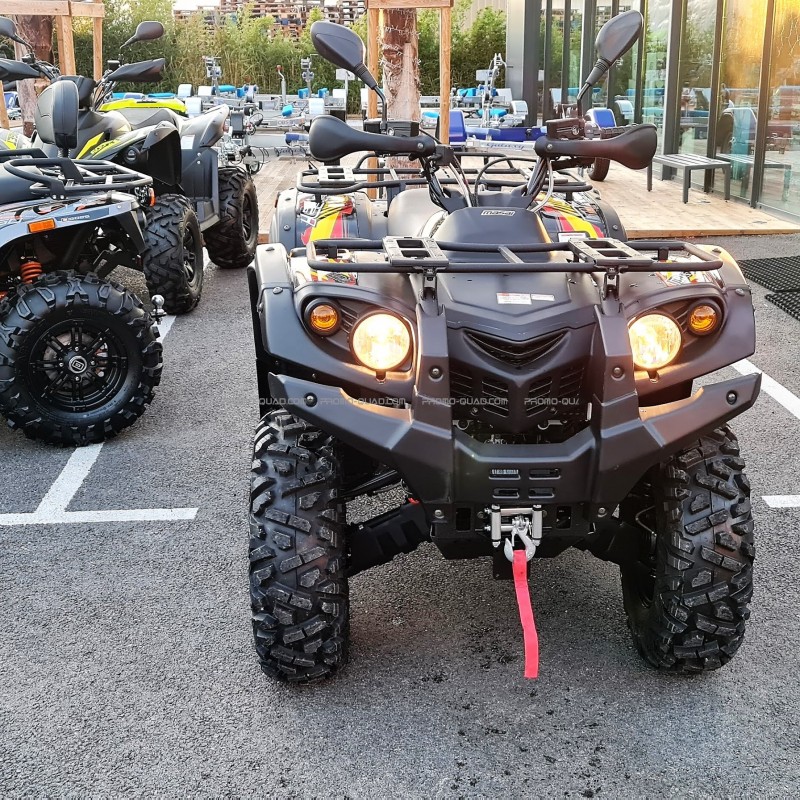

Winch
Towbar ball + towbar socket
