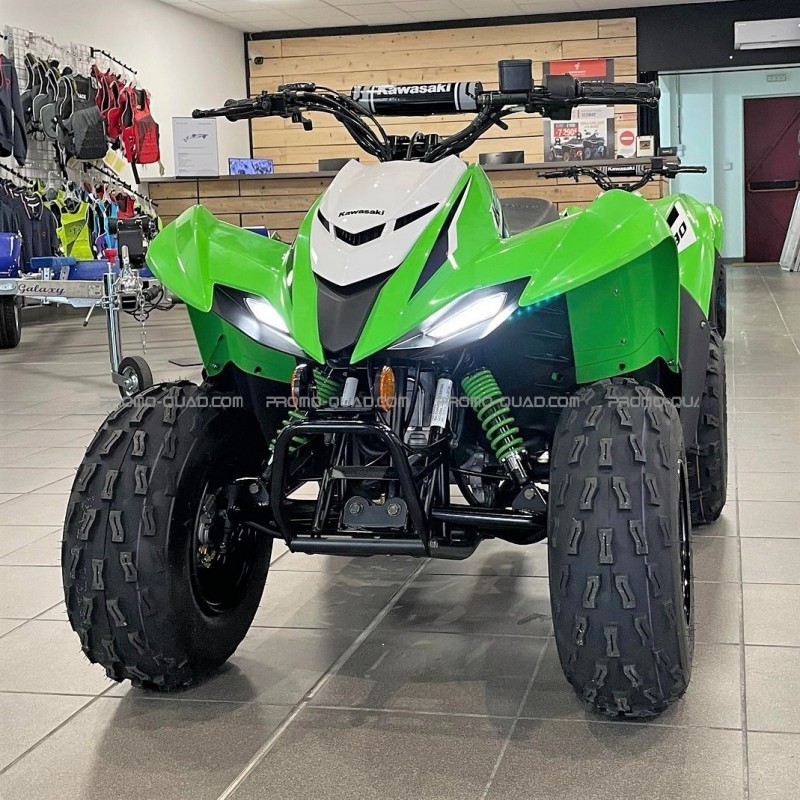

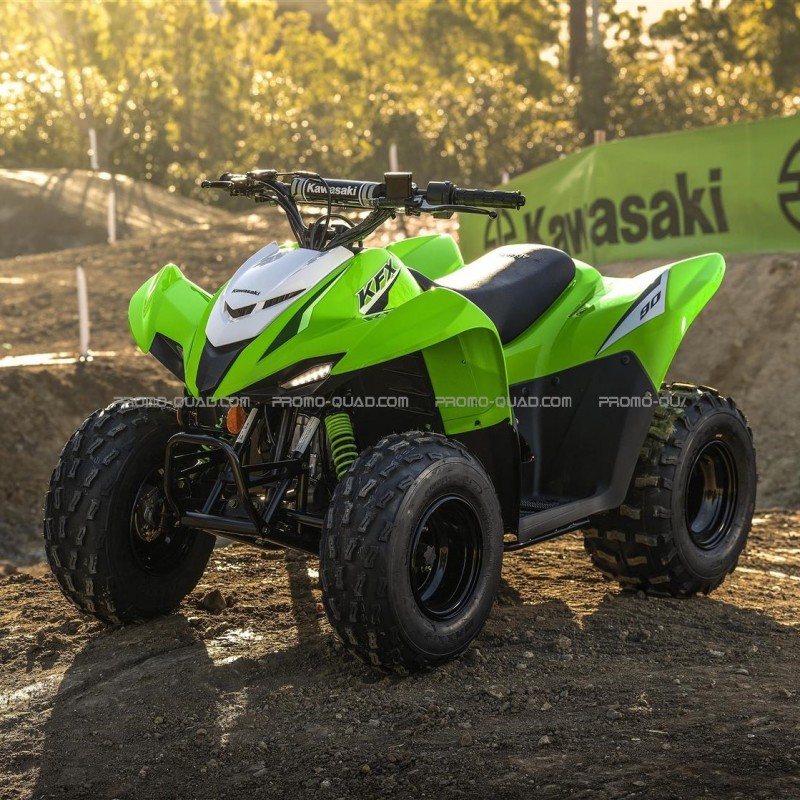

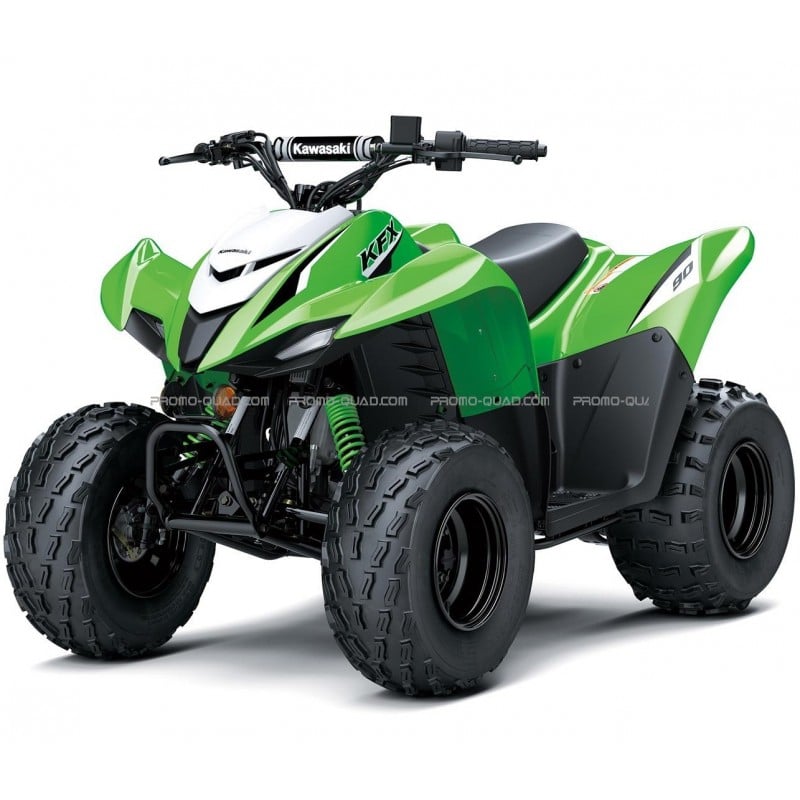

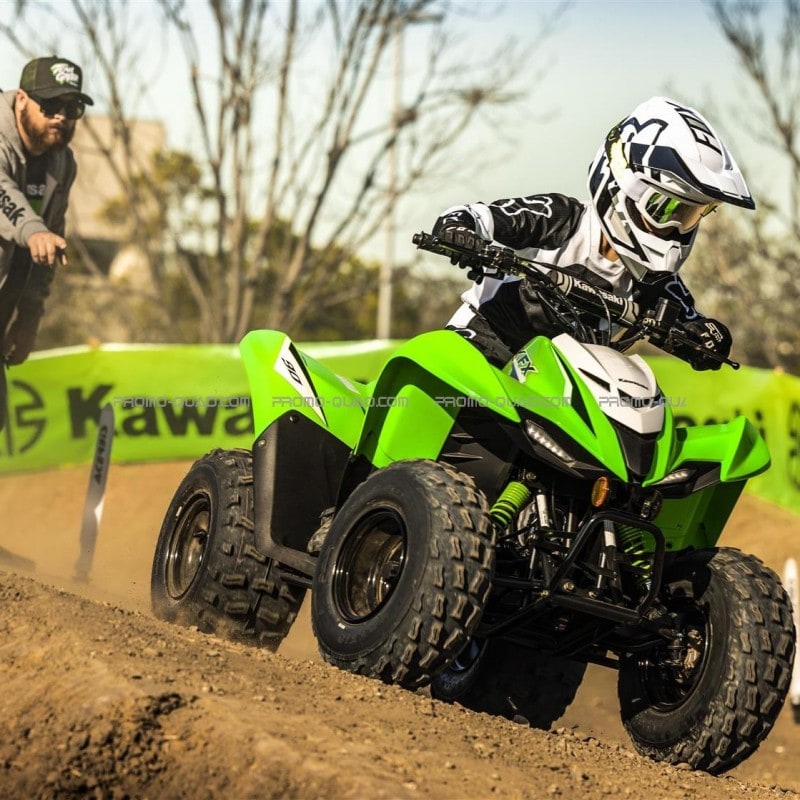

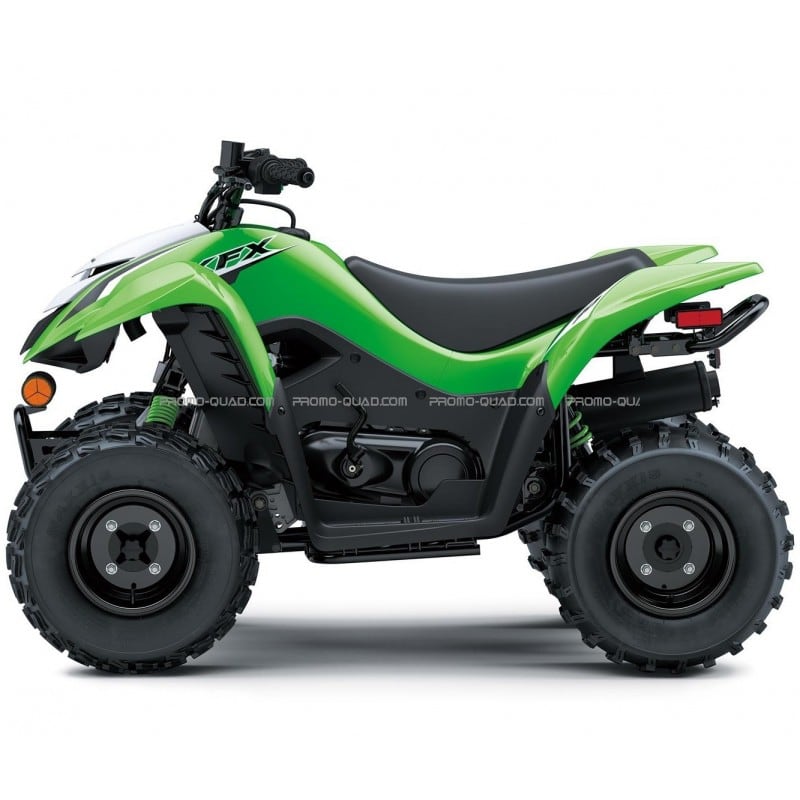

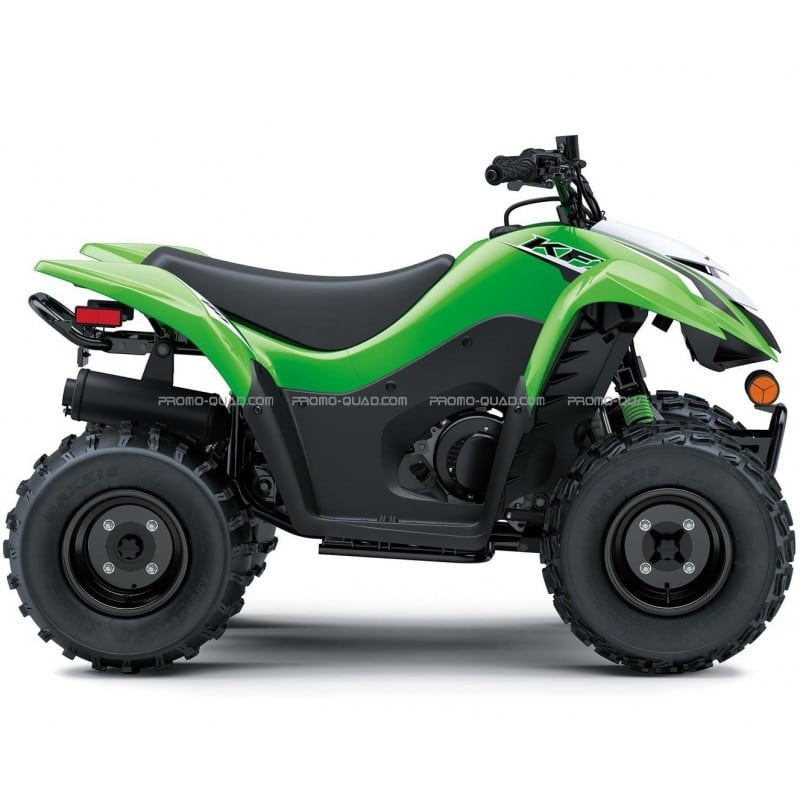

Kawasaki KFX 90 Children's Quad

FOR DEMANDING TERRAIN AND GREAT ADVENTURES

Fun on four wheels starts with the KFX90. Get the kids ready to ride the KFX90 quad, which is powered and sized just right for riders ages 10 and up. The KFX90 lets kids tackle tougher trails and bigger adventures with an 89.9cc engine and sporty suspension.

A more aggressive style
A new, sharper style transforms this children's quad, giving it a much more attractive appearance than its toy-like predecessors. Its affiliation with the KX family contributes to its sporty and aggressive appearance while ensuring it is instantly recognizable as a Kawasaki model.

Increased mud protection
Increased mud protection helps prevent dirt and debris from entering the engine compartment.

LED lights
While previously just cosmetic, the new true LED lights improve the aesthetics of the quad while making it easier to see allowing you to know where your young rider is while riding.

Non-slip running boards
Footboards equipped with non-slip materials help young riders control their quad whether standing or seated.

Engine
Engine type: Air-cooled 4-stroke single cylinder
Displacement: 90 cm³
Bore x stroke: 47 x 51.8 mm
Compression ratio: 10:1
Distribution system: Overhead camshaft, 2 valves
Fuel system: Carburetor
Ignition: Battery & Coil (transistorized ignition)
Starting system: Electric and kick

Brakes & Suspensions
Brakes, front: Mechanical drum
Brakes, rear: Hydraulic disc
Suspension, front: Single wishbone
Suspension, rear: Swingarm

Performance & Transmission
Maximum power: 4.7 kW {6.3 hp} / 7,250 rpm
Maximum torque: 6.6 N•m {0.6 kgf•m} / 6,250 rpm
Transmission: Continuously variable transmission (CVT) with centrifugal clutch
Final workout: Chain

Chassis & Dimensions
Frame type: Double cradle, steel
Hunting: 15 mm
Front wheel travel: 71 mm
Rear wheel travel: 74 mm
Tire, front: AT18X7-8
Tire, rear: AT18X9-8
L x W x H: 1.425 x 905 x 925 mm
Wheelbase: 965 mm
Ground clearance: 150 (frame), 100 (swingarm) mm
Fuel capacity: 5.3 liters
Weight fully loaded: 122
